A/C Compressor Solenoid Clutch, Adjustment [2017-2018, B4204T11]: Removal

See information about lifting points body, refer to: JACKING POINTS BODY

Remove right front wheel, refer to: WHEELS

Courtesy of VOLVO CARS CORPORATION

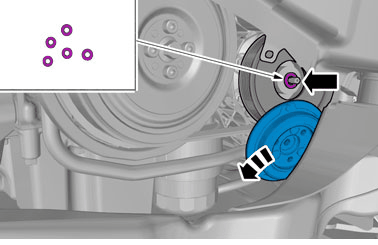

Remove the nuts.

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

Remove the clips.

Courtesy of VOLVO CARS CORPORATION

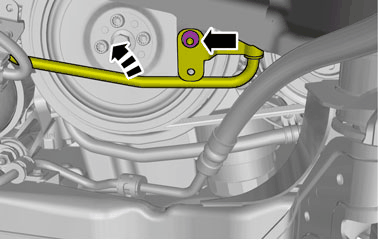

Remove the nut.

Torque:  M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Special Tool: 999 7404

Courtesy of VOLVO CARS CORPORATION

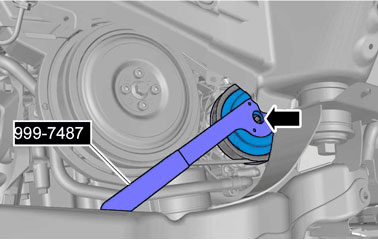

Remove the nut.

Torque:  Air Conditioning Clutch to Air Conditioning (A/C) Compressor, 28Nm

Special Tool: 999 7487

Courtesy of VOLVO CARS CORPORATION
