Symbols [2016-2018]: Materials

The symbols indicate that some form of material is to be used in the procedure.

Courtesy of VOLVO CARS CORPORATION

1. Apply, what is to be applied is evident from the context.
2. Apply to a diameter stated in the image, what is to be applied is evident from the context
3. Apply, what is to be applied is evident from the context.
4. Apply to a diameter stated in the image, what is to be applied is evident from the context

Courtesy of VOLVO CARS CORPORATION

1. Apply using a roller, what is to be applied is evident from the context
2. Apply using a brush, what is to be applied is evident from the context
3. Apply the specified chemical from a spray can

Courtesy of VOLVO CARS CORPORATION

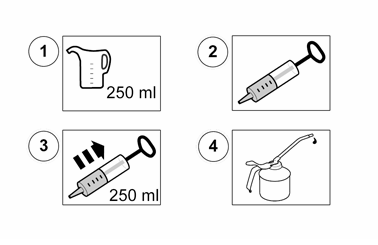

1. Add a liquid, the type of liquid is indicated by the context or is stated in the procedure.
2. Use a syringe
3. Use a syringe
4. Use oil for lubrication

Courtesy of VOLVO CARS CORPORATION

1. Use a pop rivet
2. Use a cable tie
3. Use tape
