Movement Arrows

Courtesy of VOLVO CARS CORPORATION

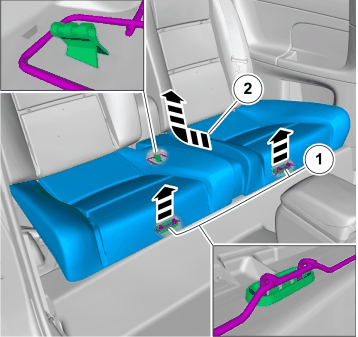

In this instance the movement arrows are numbered to denote the order in which you should push or pull the component.

Courtesy of VOLVO CARS CORPORATION

Rotation arrows show that you should turn the part to install or remove it.

Courtesy of VOLVO CARS CORPORATION

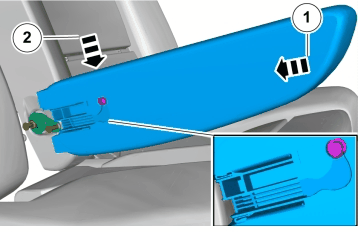

Angled movement arrows indicate that the component should first be moved in one direction, and then in another direction.

In this instance the movement arrows are numbered to denote the order in which you should push or pull the component.
