Fuel Tank [2018, B4204T11, TG-81SC AWD]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

See information about safety information gasoline-fuel system, refer to: SAFETY INFORMATION GASOLINE - FUEL SYSTEM

Perform fuel tank draining, refer to: FUEL TANK DRAINING

See information about lifting points body, refer to: JACKING POINTS BODY

GLL173475

Courtesy of VOLVO CARS CORPORATION

Remove muffler front, refer to: MUFFLER, FRONT

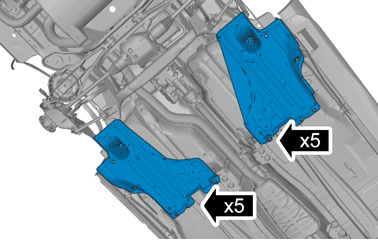

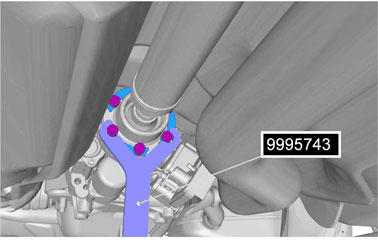

GLL173675

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Note the position of the component before removal.

Special Tool: 999 5743

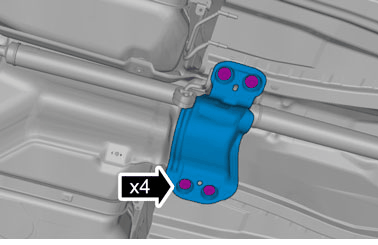

GLL173479

Courtesy of VOLVO CARS CORPORATION

Torque: M8, 24Nm

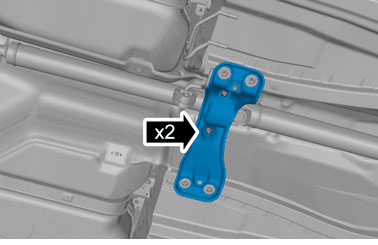

GLL173478

Courtesy of VOLVO CARS CORPORATION

Torque: M8, 24Nm

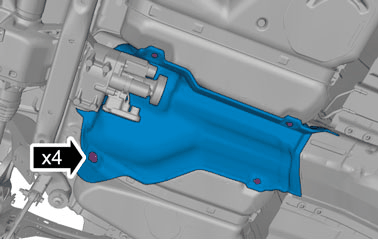

GLL173486

Courtesy of VOLVO CARS CORPORATION

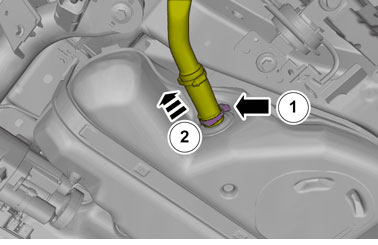

GLL173484

Courtesy of VOLVO CARS CORPORATION

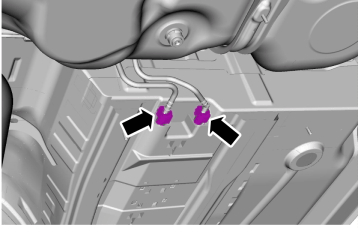

GLL155700

Courtesy of VOLVO CARS CORPORATION

WARNING:

Be prepared to collect escaping fluid.

CAUTION:

Make sure that all openings are sealed.

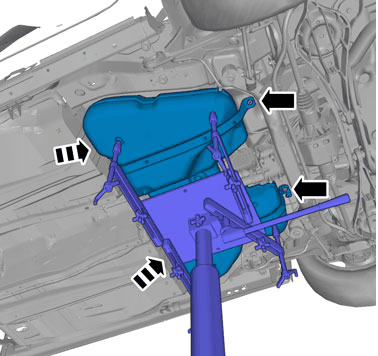

GLL173524

Courtesy of VOLVO CARS CORPORATION

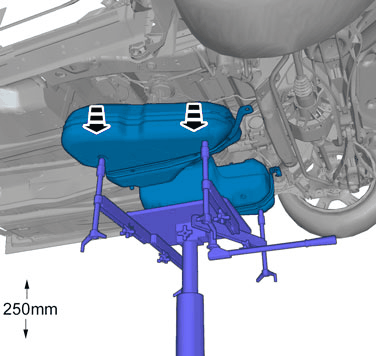

Use: Unit lift

GLL173526

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the wiring harness does not catch.

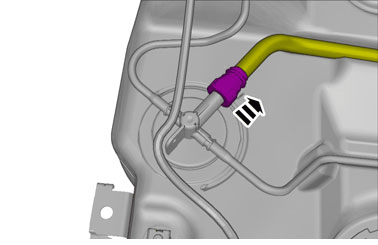

GLL173472

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that all openings are sealed.

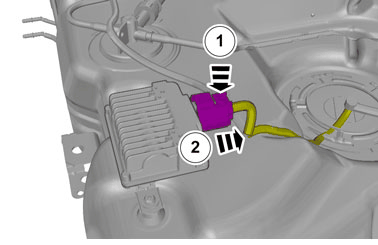

GLL173473

Courtesy of VOLVO CARS CORPORATION

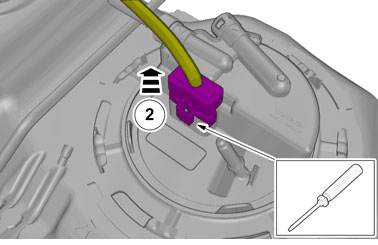

GLL173474

Courtesy of VOLVO CARS CORPORATION

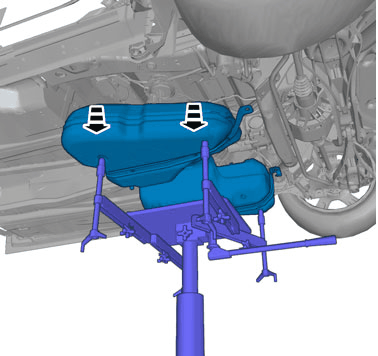

GLL173528

Courtesy of VOLVO CARS CORPORATION

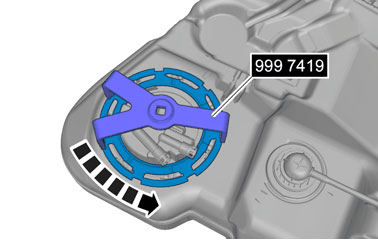

GLL173476

Courtesy of VOLVO CARS CORPORATION

Special Tool: 999 7419

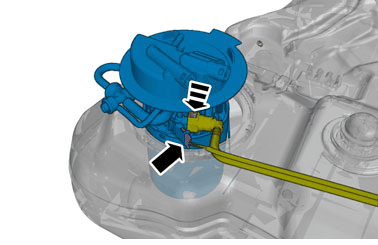

GLL173471

Courtesy of VOLVO CARS CORPORATION

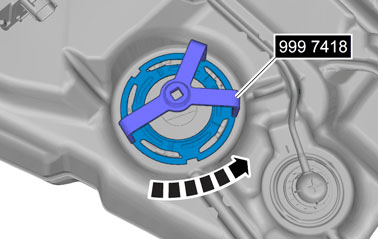

GLL173477

Courtesy of VOLVO CARS CORPORATION

Special Tool: 999 7418

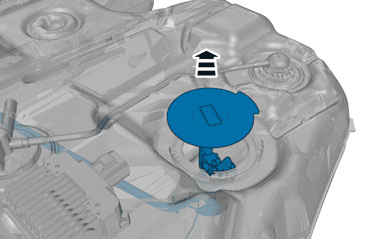

GLL173480

Courtesy of VOLVO CARS CORPORATION

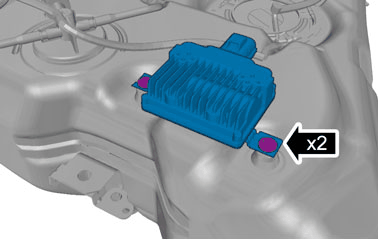

GLL173481

Courtesy of VOLVO CARS CORPORATION

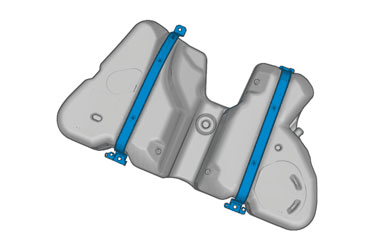

GLL173483

Courtesy of VOLVO CARS CORPORATION

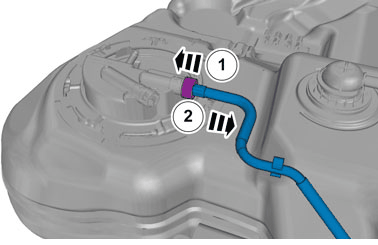

GLL173485

Courtesy of VOLVO CARS CORPORATION
