Fuel Rail [2016, B5254T12, TF-80SC AWD]: Removal
NOTE:
Removal steps in this procedure may contain installation details.
Battery, disconnection, refer to: BATTERY DISCONNECTING AND CONNECTING
Remove the air filter housing, refer to: AIR CLEANER HOUSING

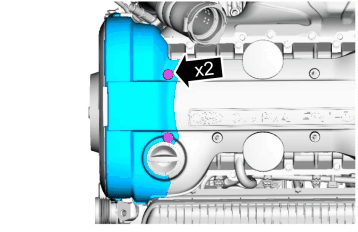

Torque: M6, 10Nm
CAUTION:
Make sure that the inside of the pipe ends are clean and free of oil residue.
CAUTION:
Make sure that the inside of the pipe ends are clean and free of oil residue.
CAUTION:
Make sure that the inside of the pipe ends are clean and free of oil residue.

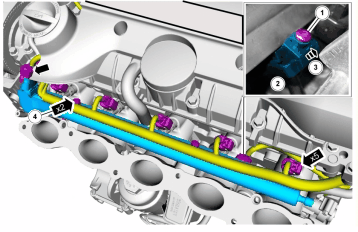

Torque: M7, 17Nm

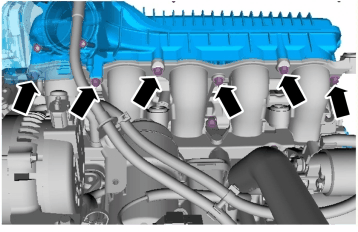

Torque: M6, 10Nm
