Removal And Installation
REMOVAL
Removal steps in this procedure may contain installation details.
Perform depressurizing fuel system, refer to: FUEL SYSTEM PRESSURE RELEASE

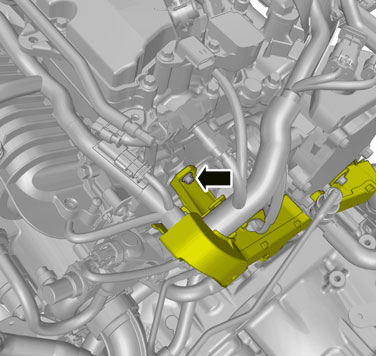

Loosen the screws.

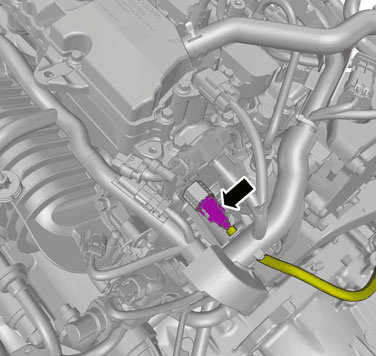

Release the connector's catch.
Disconnect the connector.

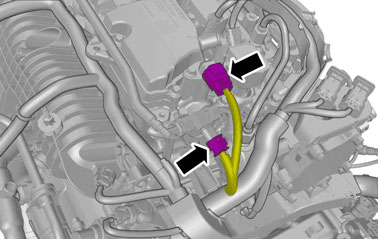

Release the connector catches.
Disconnect the connectors.

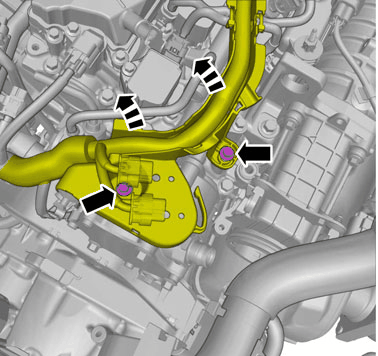

Remove the screws.
Torque: M6, 10Nm

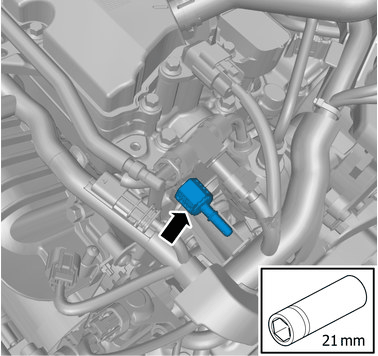

Remove the hose.
Remove the screw.
Remove the screw.
Torque: M6, 10Nm
See information about safety information fuel system, refer to: SAFETY INFORMATION FUEL SYSTEM
Be prepared to collect escaping fluid.

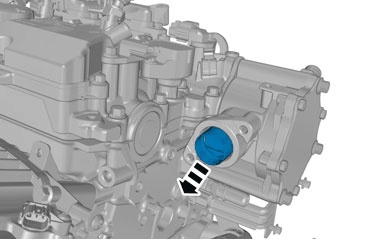

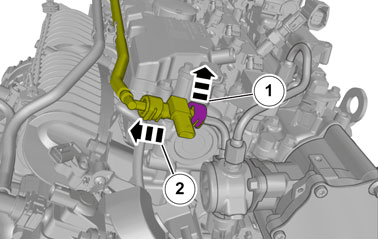

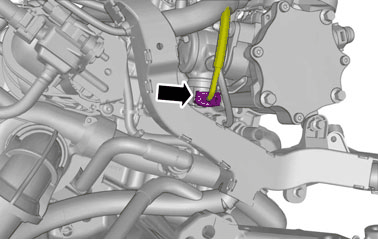

Release the lock.

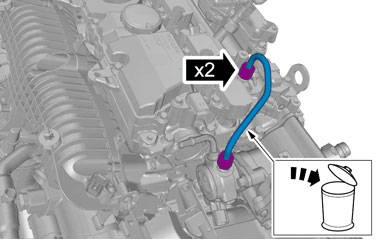

Remove the hose.
Make sure that all openings are sealed.
Make sure that a new component is installed.
Torque:High-Pressure Fuel Line to Fuel Pump,
- Stage 1: 12Nm
- Stage 2: 25Nm

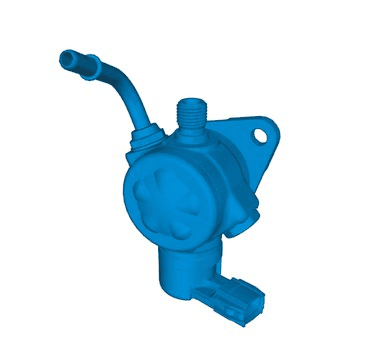

This component is sensitive to "mechanical stresses". If the component has been dropped onto the floor, for example, it must not be installed in a vehicle.

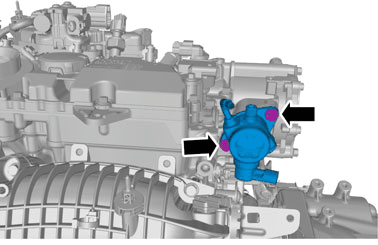

Remove the screws.

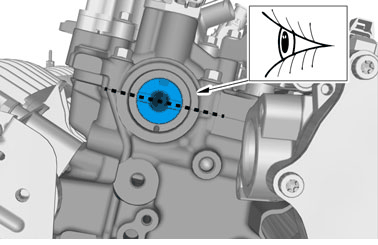

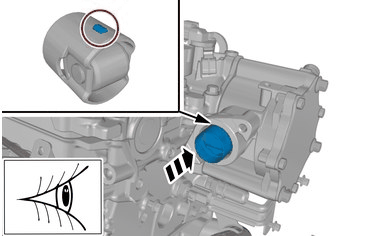

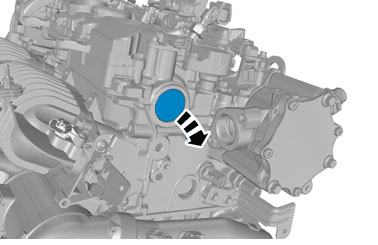

Remove the marked part.
This component is sensitive to "mechanical stresses". If the component has been dropped onto the floor, for example, it must not be installed in a vehicle.
Make sure that no component falls off during removal.
Be prepared to collect escaping fluid.
Make sure that the area around the component is clean and free of foreign material.
INSTALLATION
This component is sensitive to "mechanical stresses". If the component has been dropped onto the floor, for example, it must not be installed in a vehicle.
Make sure that the component is positioned correctly.
Make sure that the components are positioned correctly.
Torque: M8, 24Nm
To install, reverse the removal procedure.
CHECK

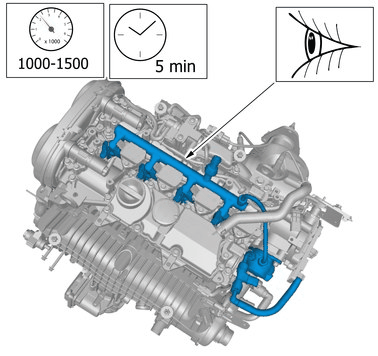

Make sure that there are no leaks.
Start the engine.
