Fuel Pump, Leakage Detection [2017-2018, B4204T11, TG-81SC AWD | 2016, B5254T12, TF-80SC AWD]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Perform rear end, service position, refer to: REAR SUSPENSION, SERVICE POSITION

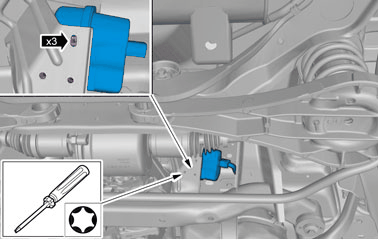

GLL1011584

Courtesy of VOLVO CARS CORPORATION

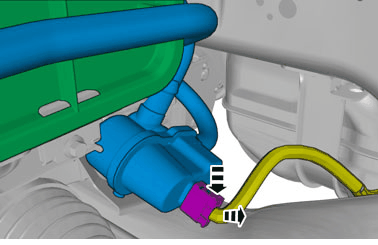

GLL1016266

Courtesy of VOLVO CARS CORPORATION

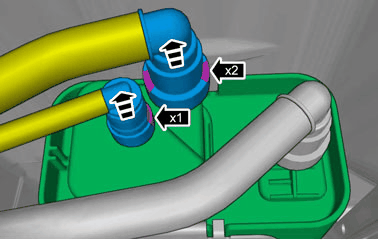

GLL1037010

Courtesy of VOLVO CARS CORPORATION

NOTE:

Note the position of the component before removal.

VEHICLES EARLY VERSION

GLL1027959

Courtesy of VOLVO CARS CORPORATION

NOTE:

Note the position of the component before removal.

VEHICLES LATE VERSION

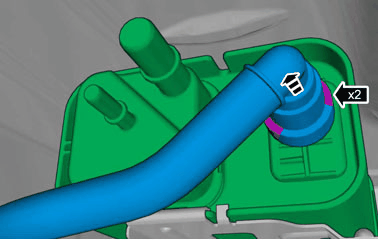

GLL1002163

Courtesy of VOLVO CARS CORPORATION

NOTE:

Note the position of the component before removal.

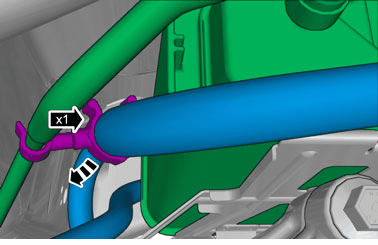

GLL1011292

Courtesy of VOLVO CARS CORPORATION

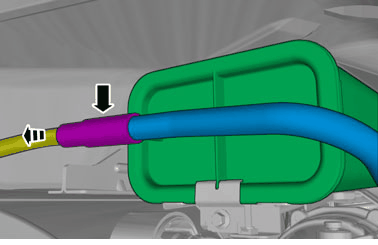

GLL1002720

Courtesy of VOLVO CARS CORPORATION

NOTE:

Note the position of the component before removal.

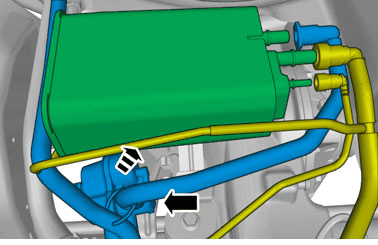

GLL1006176

Courtesy of VOLVO CARS CORPORATION

NOTE:

Note the position of the component before removal.
