EVAP Valve [2017-2018, B4204T11]: Removal
NOTE:
Removal steps in this procedure may contain installation details.
 Courtesy of VOLVO CARS CORPORATION
|

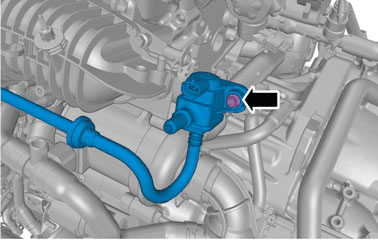

Loosen the screws.
 Courtesy of VOLVO CARS CORPORATION
|

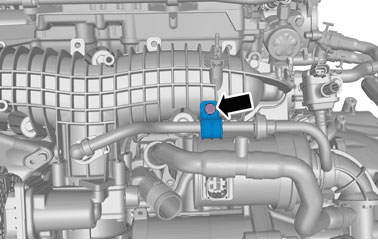

Release the lock.
Disconnect the connector.
 Courtesy of VOLVO CARS CORPORATION
|

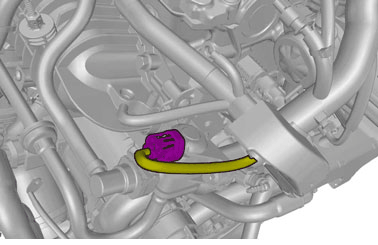

Release the lock.
Remove the hose.
 Courtesy of VOLVO CARS CORPORATION
|
Remove the screw.
 Courtesy of VOLVO CARS CORPORATION
|
Release the lock.
Remove the hose.
 Courtesy of VOLVO CARS CORPORATION
|
Remove the screw.
Torque:
M5, 5Nm
