Fuel Tank Draining [2016, B5254T12, TF-80SC AWD]

Courtesy of VOLVO CARS CORPORATION	951 2896 Hose  Tool number:  951 2896 Tool description:  Hose Tool boards:  23
Courtesy of VOLVO CARS CORPORATION	999 7393 Hose  Tool number:  999 7393 Tool description:  Hose Tool boards:  23

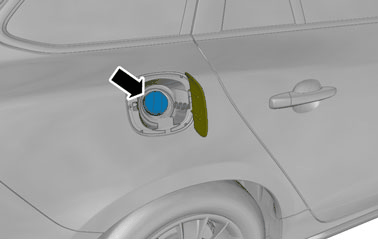

DRAINING

Courtesy of VOLVO CARS CORPORATION

DRAINAGE

Courtesy of VOLVO CARS CORPORATION

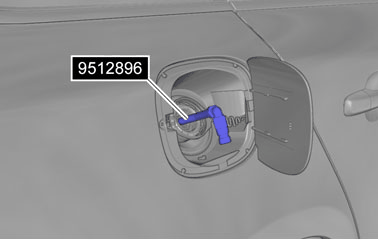

Special Tool: 951 2896

Use:  Fuel drainage equipment

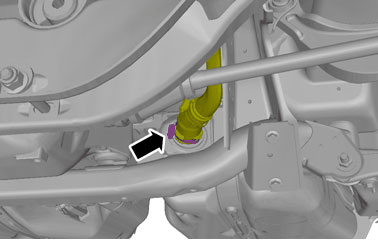

Follow instructions for lifting points body frame, refer to: JACKING POINTS BODY

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

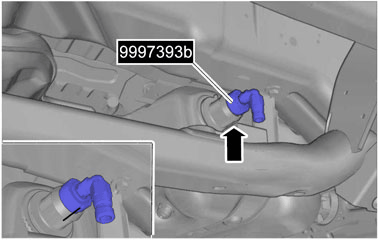

Special Tool: 999 7393
