Fuel System Pressure, Checking [2016, B5254T12]
| T9995011 MANOMETER (FUEL PRESSURE) CI, LH, LE Tool number: T9995011 Tool description: MANOMETER (FUEL PRESSURE) CI, LH, LE Tool boards: |
|
| T9989725 ADAPTER (-5011 CONNECTION TANK DRAINING UNIT) Tool number: T9989725 Tool description: ADAPTER (-5011 CONNECTION TANK DRAINING UNIT) Tool boards: |
|
| T9995479 ADAPTER (CHECK-FUEL PRESSURE) Tool number: T9995479 Tool description: ADAPTER (CHECK-FUEL PRESSURE) Tool boards: |
|
| T9812270 PUMP TROLLEY Tool number: T9812270 Tool description: PUMP TROLLEY Tool boards: |
|
| T9812273 PUMP (UNLEADED) Tool number: T9812273 Tool description: PUMP (UNLEADED) Tool boards: |
|
| T9812282 TANK (UNLEADED GASOLINE) Tool number: T9812282 Tool description: TANK (UNLEADED GASOLINE) Tool boards: |
Check the fuel pressure see: Diagnostics, Vehicle communication, ECM, Parameters, Fuel pressure.
Absolute pressure: Fuel pressure in fuel system + air pressure.
Relative pressure: Fuel pressure in fuel system.
The air pressure is approx. 100 kPa at sea level. VIDA measures the fuel pressure in absolute pressure. External pressure gauge (pressure gauge) measures the fuel pressure in relative pressure.
Fuel line pressure, refer to: ENGINE
The following method must be used when reading the fuel line pressure on the fuel rail:

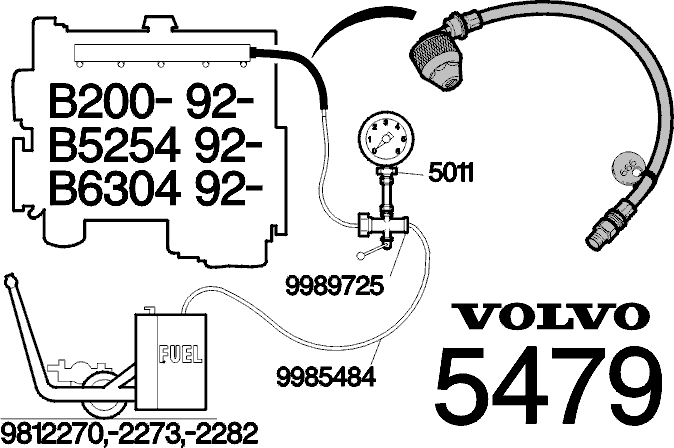

Engagement of fuel pressure gauge.
Supplement the pressure gauge with adapter and nipple before use.

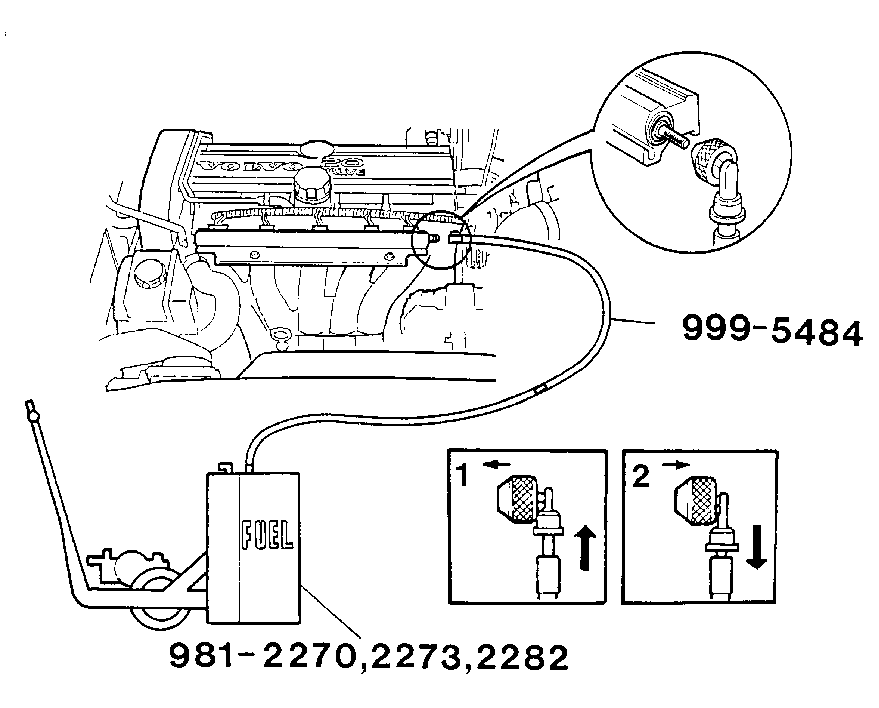

Connect the adapter to the valve on the fuel rail in the locked position (image 1, valve closed).
Set the cock on the pressure gauge in the direction of the nipple.
Connect the pressure gauge's other connection to the fuel drain equipment.
Unlock the adapter (illustration 2, valve open).
Start the engine.
Read off the relative pressure.
Disengagement of fuel pressure gauge.
Ignition off.
Start the draining unit.
Set the cock on the pressure gauge to the central position.
Secure the adapter (image 1, valve closed).
Remove the adapter from the valve.
Stop the draining unit.
Reset the equipment.
