Turbocharger [2017-2018, B4204T11]: Removal

Courtesy of VOLVO CARS CORPORATION

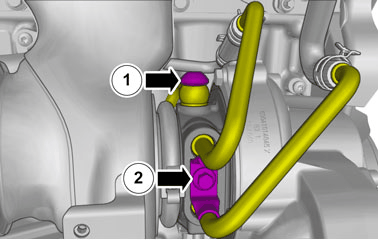

Loosen the screws.

Drain cooling system, draining, filling, and bleeding, refer to: COOLING SYSTEM - DRAINING, CHARGING AND BLEEDING

Remove the catalytic converter, refer to: CATALYTIC CONVERTER

Courtesy of VOLVO CARS CORPORATION

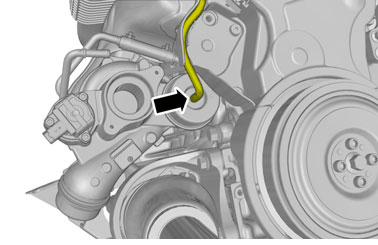

Loosen the hose clamp.

Release the lock.

Remove the hose.

A click confirms that the component is in the correct position.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

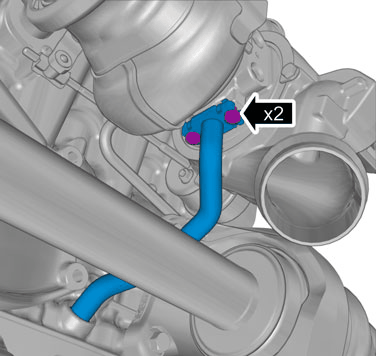

Remove the screw.

Torque:  M6, 10Nm

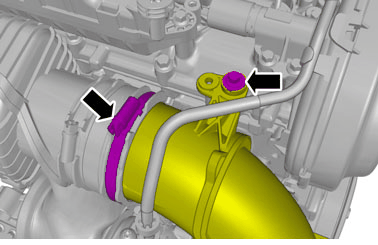

Loosen the hose clamp.

Courtesy of VOLVO CARS CORPORATION

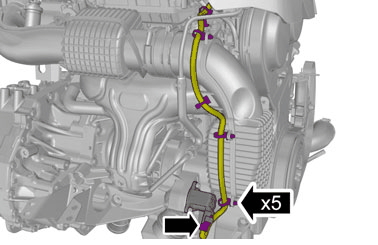

Loosen the clips.

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

Torque:  M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

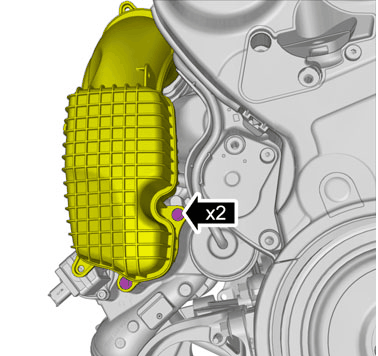

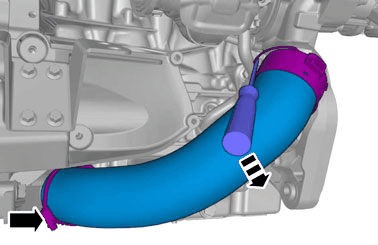

Remove the hose.

Courtesy of VOLVO CARS CORPORATION

Torque:  M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

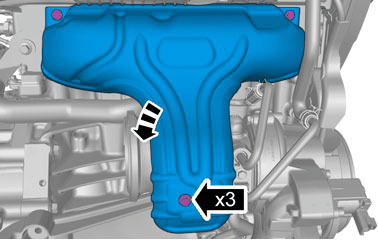

Remove the following items:

1. Torque:  M8, 24Nm
2. Torque:  M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Torque:  M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

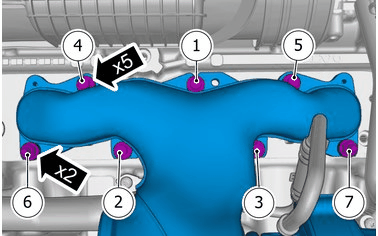

Detach the following items:

1. Torque:Exhaust manifold to cylinder head, nut,

   • Stage 1: 20Nm
   • Stage 2: 20Nm

2. Torque:Exhaust manifold to cylinder head, bolt,

   • Stage 1: 20Nm
   • Stage 2: 20Nm

Courtesy of VOLVO CARS CORPORATION

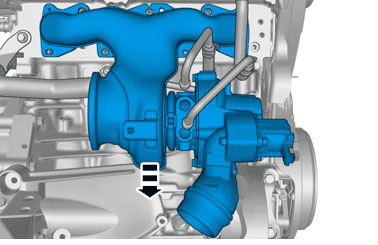

Remove the marked part.
