Turbocharger [2016, B5254T12, TF-80SC AWD]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Perform cooling system draining, charging and bleeding, refer to: COOLING SYSTEM - DRAINING, CHARGING AND BLEEDING

Remove bevel gear, refer to: BEVEL GEAR

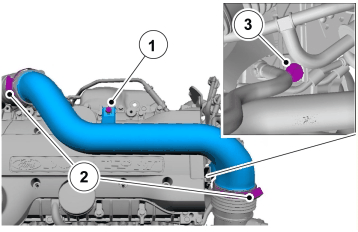

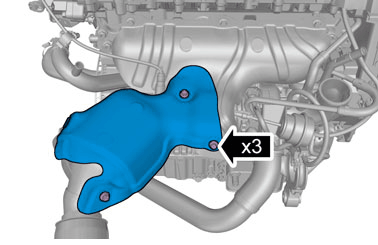

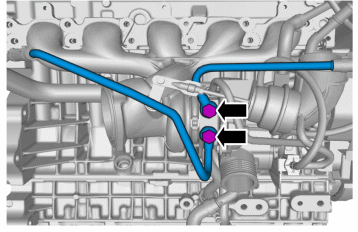

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the inside of the pipe ends are clean and free of oil residue.

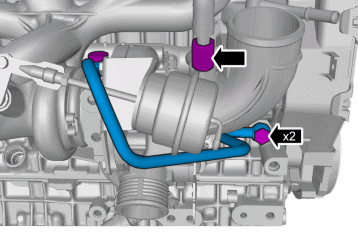

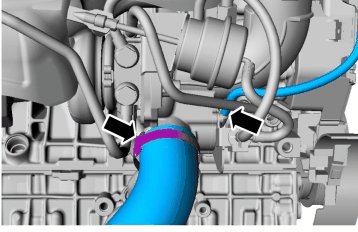

Courtesy of VOLVO CARS CORPORATION

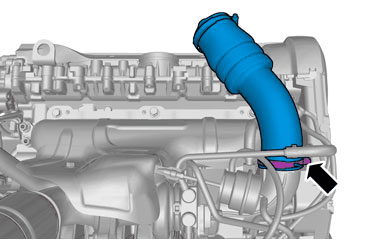

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the inside of the pipe ends are clean and free of oil residue.

Torque: M6, 10Nm

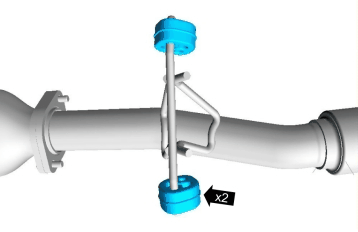

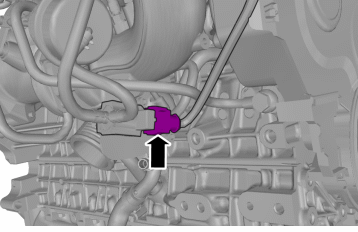

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the inside of the pipe ends are clean and free of oil residue.

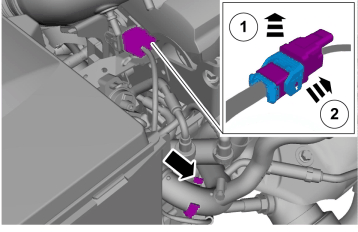

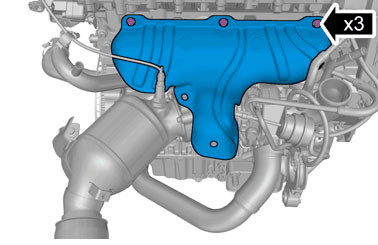

Courtesy of VOLVO CARS CORPORATION

Torque: M6, 10Nm

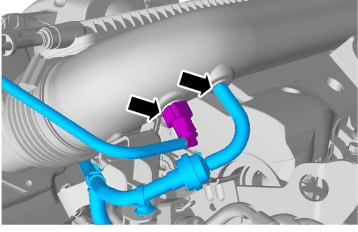

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the inside of the pipe ends are clean and free of oil residue.

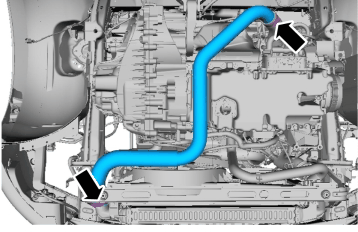

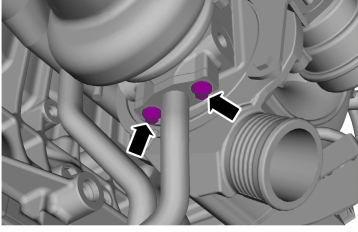

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the inside of the pipe ends are clean and free of oil residue.

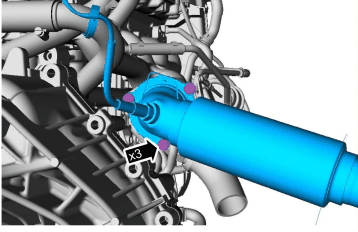

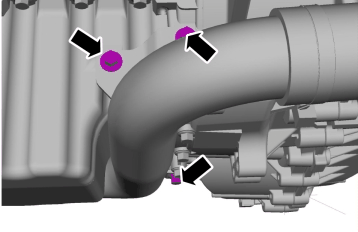

Courtesy of VOLVO CARS CORPORATION

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

Torque: M8, 24Nm

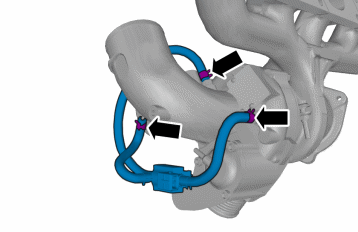

Courtesy of VOLVO CARS CORPORATION

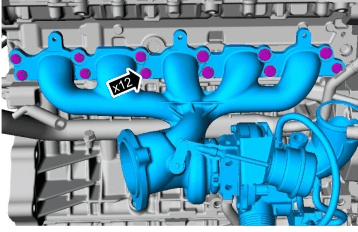

Courtesy of VOLVO CARS CORPORATION

NOTE:

Install all the bolts finger tight before final tightening.

Torque: Catalytic converter to turbocharger, 24Nm

Courtesy of VOLVO CARS CORPORATION

Torque: Coolant pipe to turbocharger, 38Nm

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Install the following items:

Courtesy of VOLVO CARS CORPORATION

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION
