Throttle Body [2018, B4204T11]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

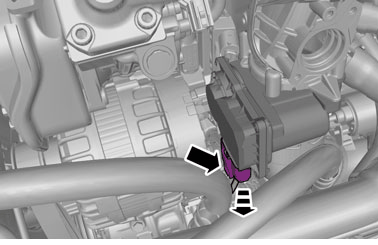

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Release the lock.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the area around the component is clean and free of foreign material.

NOTE:

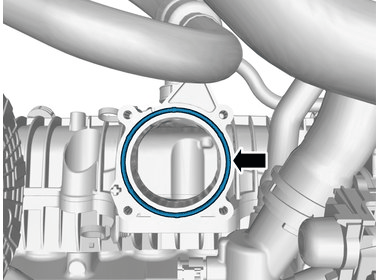

Make sure that the seal is correctly located.

Follow instructions for lifting points body frame, refer to: JACKING POINTS BODY

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Remove the clips.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

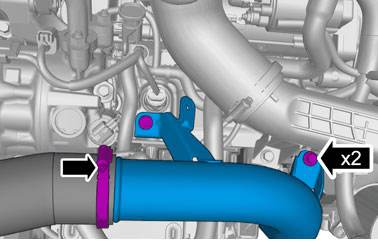

Loosen the hose clamp.

Remove the screw.

Torque: M10, 50Nm

Courtesy of VOLVO CARS CORPORATION

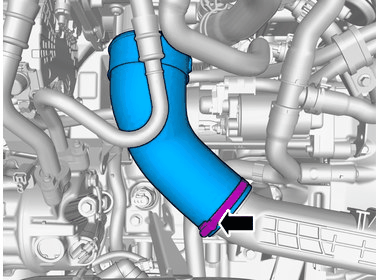

Loosen the hose clamp.

Remove the screws.

Torque: M8, 24Nm

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

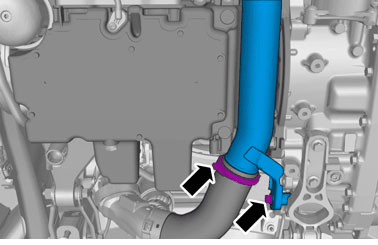

Loosen the hose clamp.

Undo the hose from the connection.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

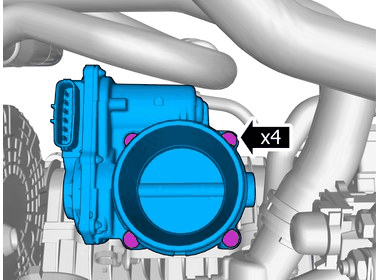

Remove the screws.

Remove the marked part.

Torque: Throttle body, 7Nm

Courtesy of VOLVO CARS CORPORATION

Make sure to replace the marked component with a new.
