Oil Trap [2018, B4204T11]: Removal

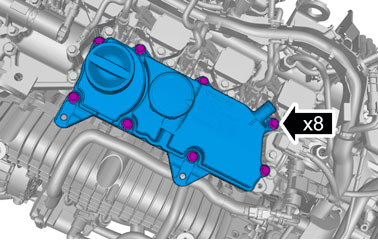

 Courtesy of VOLVO CARS CORPORATION
|
Loosen the screws.
Remove the marked part.
 Courtesy of VOLVO CARS CORPORATION
|
Loosen the hose clamp.
Undo the hose from the connection.
 Courtesy of VOLVO CARS CORPORATION
|
CAUTION:
Make sure that the area around the component is clean and free of foreign material.
Remove the screws.
