Oil Trap [2018, B4204T11]: Installation

Courtesy of VOLVO CARS CORPORATION

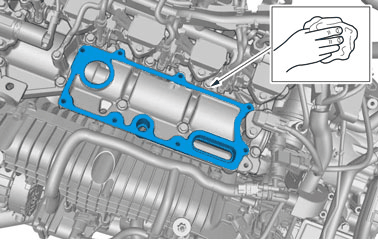

NOTE:

Make sure that the mating faces are clean and free of foreign material.

Use: Isopropanol, 1161721

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the surface is clean and free of foreign material.

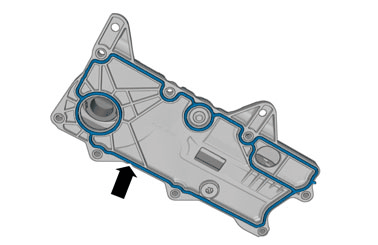

NOTE:

Make sure that a new component is installed.

NOTE:

Make sure that the seal is correctly located.

Courtesy of VOLVO CARS CORPORATION

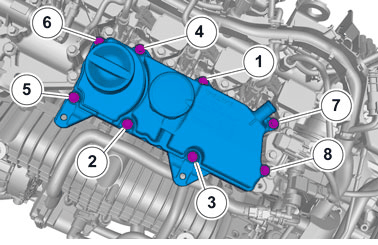

NOTE:

Make sure to follow the sequence indicated.

Torque: M6, 10Nm

To install, reverse the removal procedure.
