Muffler, Front [2018, B4204T11 | 2017, B4204T11, TG-81SC AWD]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

See information about lifting points body, refer to: JACKING POINTS BODY

Courtesy of VOLVO CARS CORPORATION

NOTE:

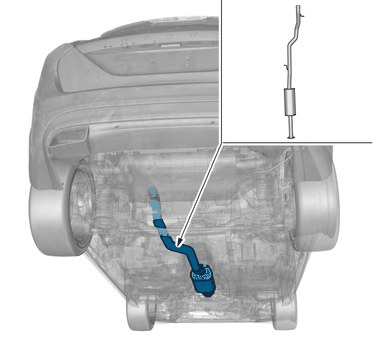

Orientation view

Courtesy of VOLVO CARS CORPORATION

WARNING:

Wear safety goggles, protective gloves and ear protectors.

Courtesy of VOLVO CARS CORPORATION

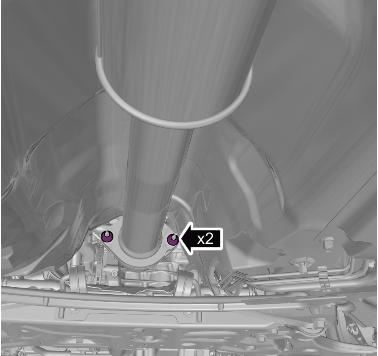

Remove the nuts.

Torque: M8, 24Nm

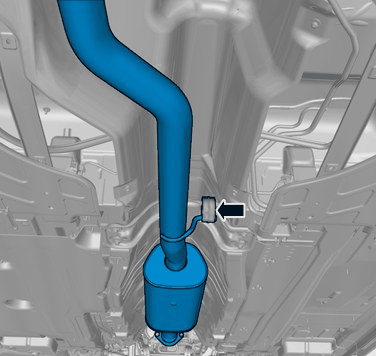

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

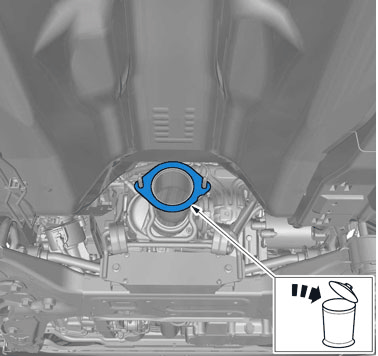

NOTE:

Make sure that a new component is installed.

Courtesy of VOLVO CARS CORPORATION

Torque: M10, 50Nm
