Muffler, Front [2016, B5254T12, TF-80SC AWD]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

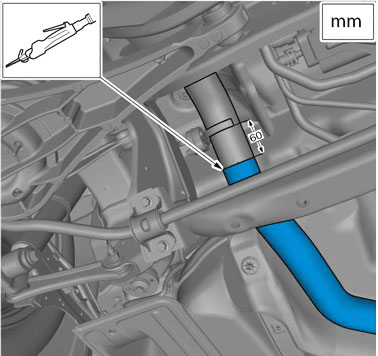

GLL1031501Courtesy of VOLVO CARS CORPORATION
WARNING:

Wear safety goggles, protective gloves and ear protectors.

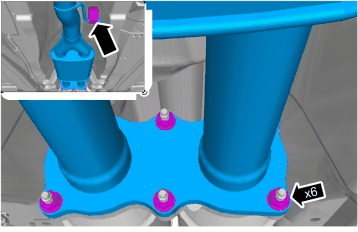

GLL155944Courtesy of VOLVO CARS CORPORATION

Remove the nuts.

Torque:  M8, 24Nm

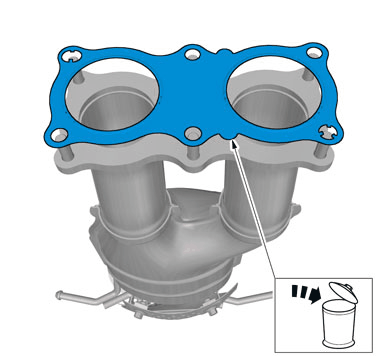

GLL1012750Courtesy of VOLVO CARS CORPORATION
NOTE:

Make sure that a new component is installed.

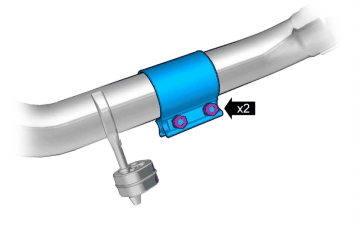

GLL155678Courtesy of VOLVO CARS CORPORATION

Tighten the nuts.

Torque:  M10, 50Nm
