Muffler Rear [2017-2018, B4204T11 | 2016, B5254T12]: Installation
To install, reverse the removal procedure.
 Courtesy of VOLVO CARS CORPORATION
|

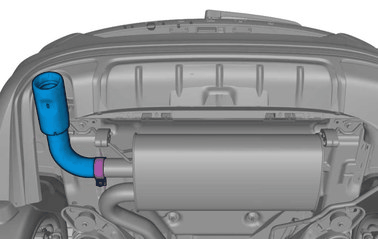

Torque:
M10, 50Nm
 Courtesy of VOLVO CARS CORPORATION
|
Tighten the nuts.

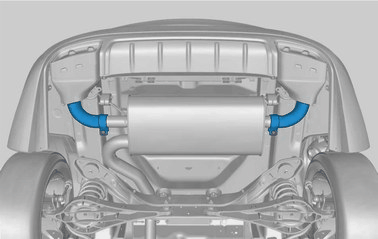

Torque:
M10, 50Nm
 Courtesy of VOLVO CARS CORPORATION
|
Tighten the nut.
Torque:
M10, 50Nm

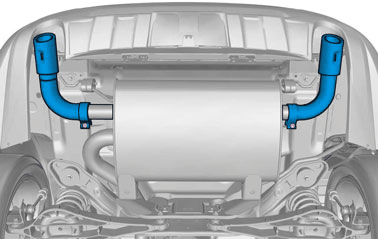

VEHICLES WITH INTEGRATED EXHAUST END PIPES
 Courtesy of VOLVO CARS CORPORATION
|
Tighten the nuts.
Torque:
M10, 50Nm
