Lambda Probe [2017-2018, B4204T11]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

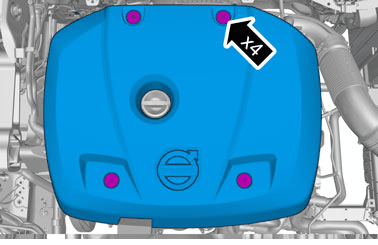

GLL1026387

Courtesy of VOLVO CARS CORPORATION

Loosen the screws.

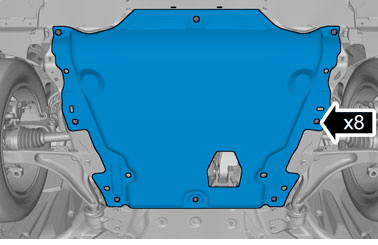

GLL177542

Courtesy of VOLVO CARS CORPORATION

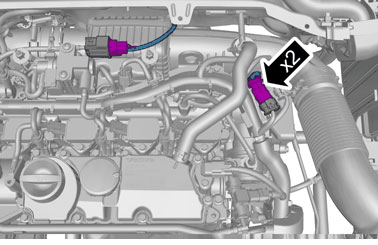

GLL1035438

Courtesy of VOLVO CARS CORPORATION

Release the lock.

Disconnect the connectors.

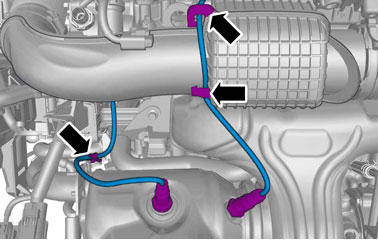

GLL1019002

Courtesy of VOLVO CARS CORPORATION

Remove the cable harness clips.

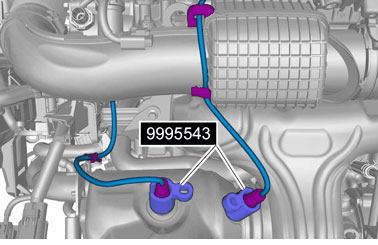

GLL1028388

Courtesy of VOLVO CARS CORPORATION

Special Tool: 999 5543

Torque: Catalyst monitor sensor, 45Nm

VEHICLES WITH THREE LAMBDA PROBES

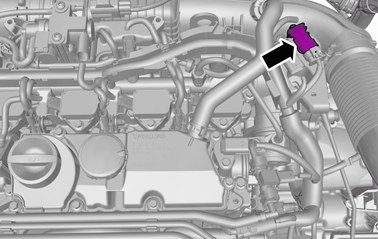

GLL1004264

Courtesy of VOLVO CARS CORPORATION

Release the lock.

Disconnect the connector.

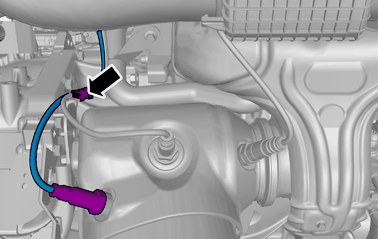

GLL1030424

Courtesy of VOLVO CARS CORPORATION

Remove the cable harness clips.

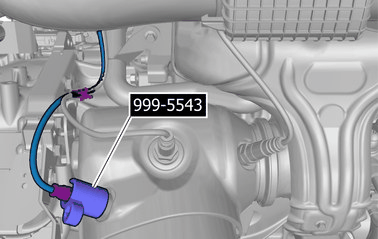

GLL1004252

Courtesy of VOLVO CARS CORPORATION

Special Tool: 999 5543

Torque: Catalyst monitor sensor, 45Nm
