Removal And Installation

REMOVAL

NOTE:

Removal steps in this procedure may contain installation details.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

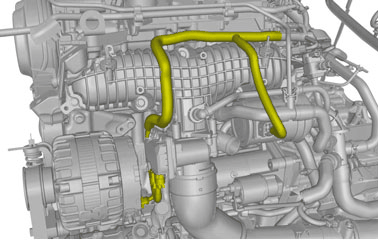

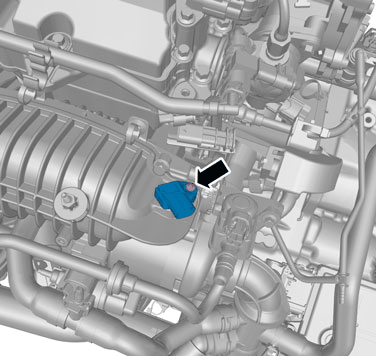

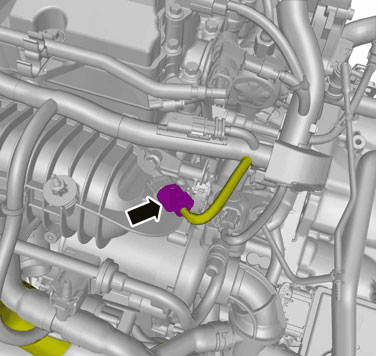

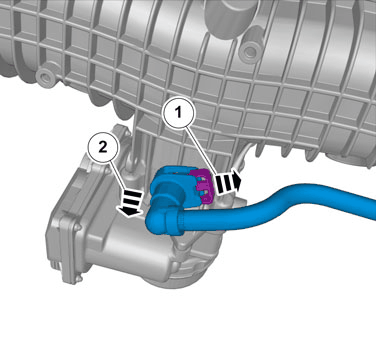

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

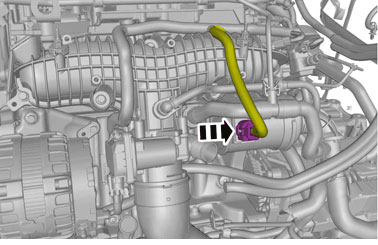

Remove the clip.

Courtesy of VOLVO CARS CORPORATION

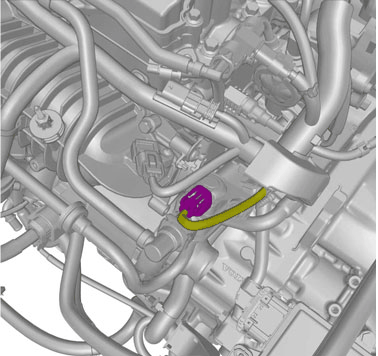

Remove the clips.

Courtesy of VOLVO CARS CORPORATION

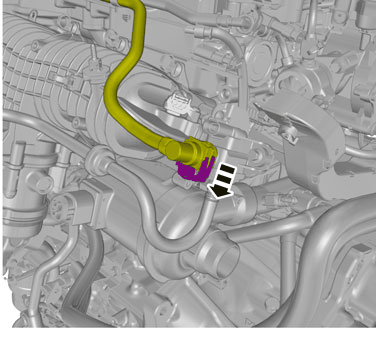

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

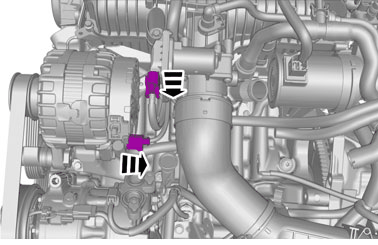

Disconnect the connectors.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

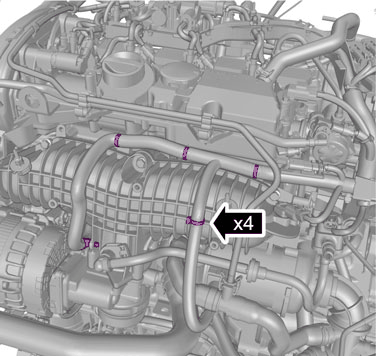

Note the routing of the lines and hoses.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the seal is correctly located.

NOTE:

Make sure that the mating faces are clean and free of foreign material.

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Torque: Manifold absolute pressure MAP sensor, 5Nm

Courtesy of VOLVO CARS CORPORATION

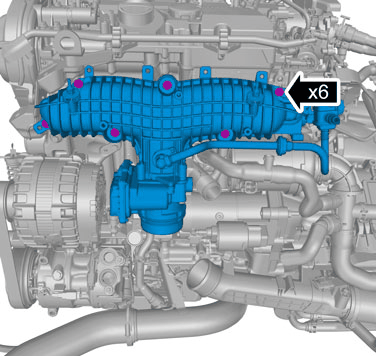

Remove the screws.

Torque: M7, 17Nm

TRANSFERRING COMPONENTS

Courtesy of VOLVO CARS CORPORATION

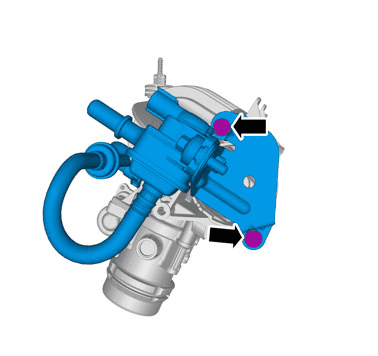

Remove the screws.

Torque: M5, 5Nm

Courtesy of VOLVO CARS CORPORATION

Remove the clip.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque: M5, 5Nm

INSTALLATION

To install, reverse the removal procedure.
