Catalytic Converter [2017-2018, B4204T11, TG-81SC AWD]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

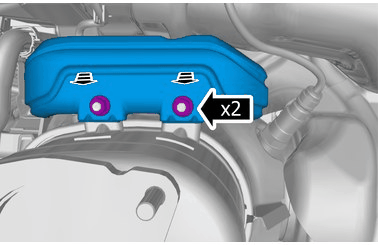

Courtesy of VOLVO CARS CORPORATION

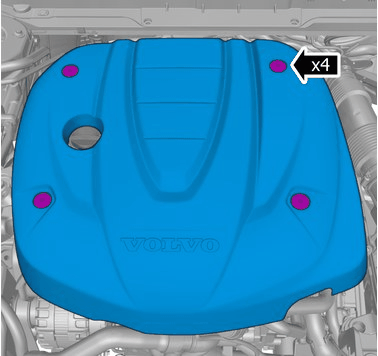

Loosen the screws.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

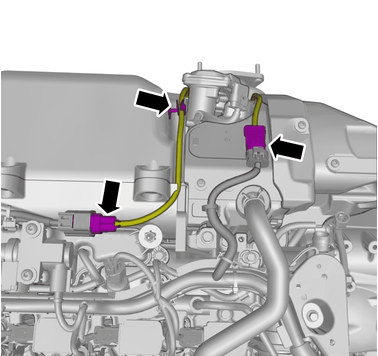

Release the locks.

Disconnect the connectors.

Remove the cable harness clips.

Follow instructions for lifting points body frame, refer to: JACKING POINTS BODY

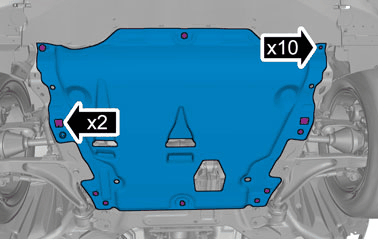

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

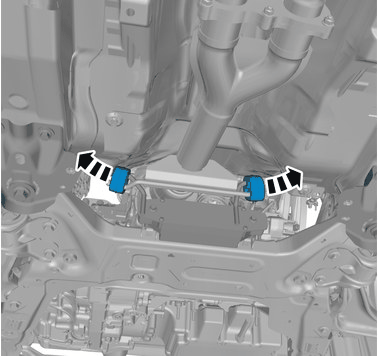

Loosen the clips.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Remove the clip.

Remove the marked part.

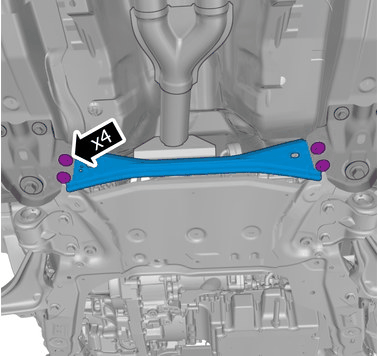

Courtesy of VOLVO CARS CORPORATION

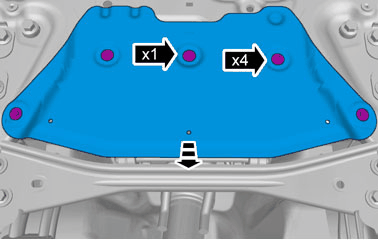

Remove the screws.

Torque: M8, 24Nm

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque: M8, 24Nm

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

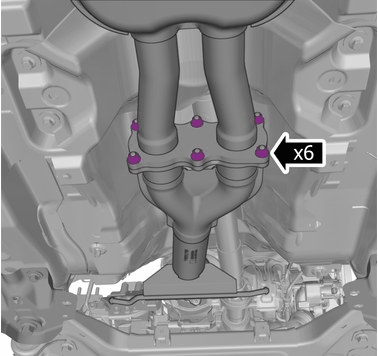

Remove the nuts.

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

Remove the nuts.

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

NOTE:

Use a new seal.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

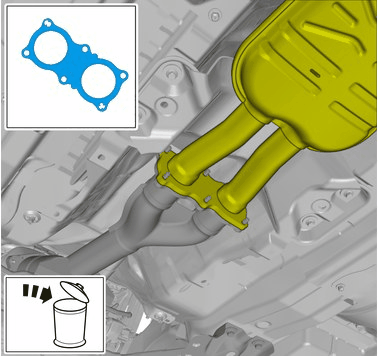

NOTE:

Use a new seal.

Remove the marked part.

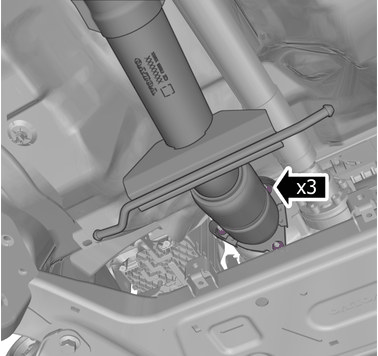

Courtesy of VOLVO CARS CORPORATION

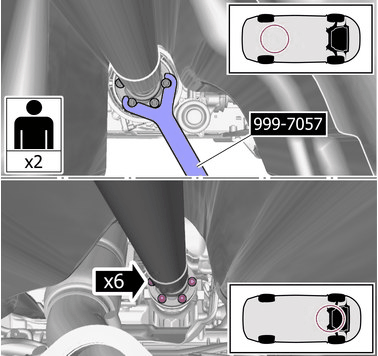

CAUTION:

Note the position of the components before removal.

NOTE:

This step requires the aid of another technician.

Remove the screws.

Torque:Prop shaft, CV joint,

Stage 1: 10Nm
Stage 2: 25Nm

Courtesy of VOLVO CARS CORPORATION

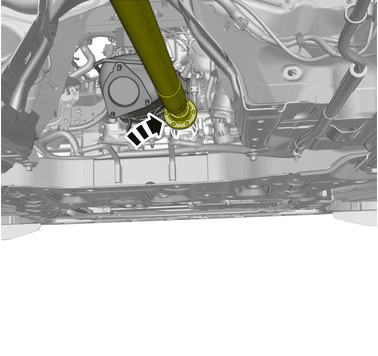

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

Remove the nuts.

Torque: M6, 10Nm

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Torque: M6, 10Nm

Remove the marked part.

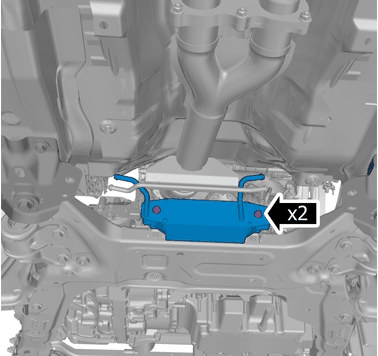

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque: M8, 24Nm

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

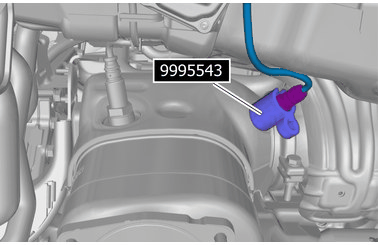

Torque: Catalyst monitor sensor, 45Nm

Special Tool: 999 5543 Socket

Courtesy of VOLVO CARS CORPORATION

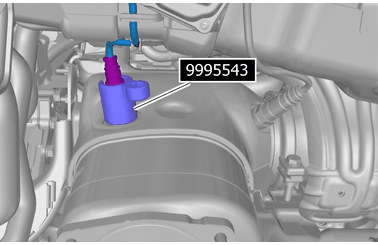

Torque: Catalyst monitor sensor, 45Nm

Special Tool: 999 5543

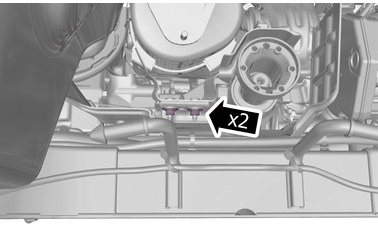

Courtesy of VOLVO CARS CORPORATION

Remove the nuts.

Torque: M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

Loosen the screws.

Torque: Clamp catalytic converter, 20Nm

Courtesy of VOLVO CARS CORPORATION

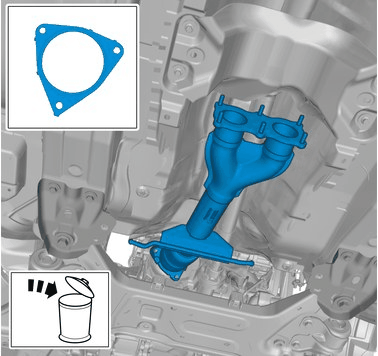

HINT: It may be necessary to twist or turn the component.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure to follow the sequence indicated.

NOTE:

Make sure that the mating faces are clean and free of foreign material.
