Air Cleaner Housing [2018, B4204T11 | 2017, B4204T11, TG-81SC AWD]: Removal
 Courtesy of VOLVO CARS CORPORATION
|

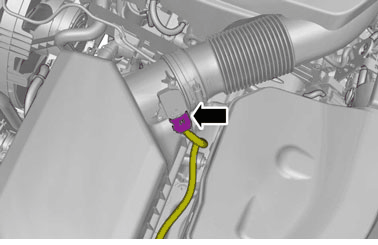

Remove the hose.
 Courtesy of VOLVO CARS CORPORATION
|

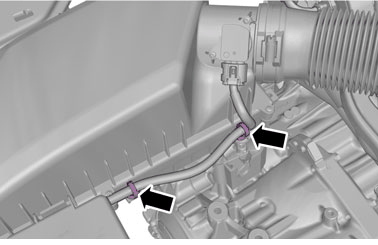

Remove the clips.
 Courtesy of VOLVO CARS CORPORATION
|

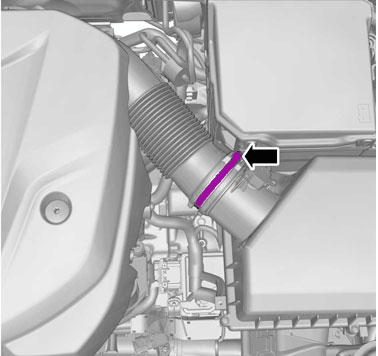

Loosen the clips.
 Courtesy of VOLVO CARS CORPORATION
|

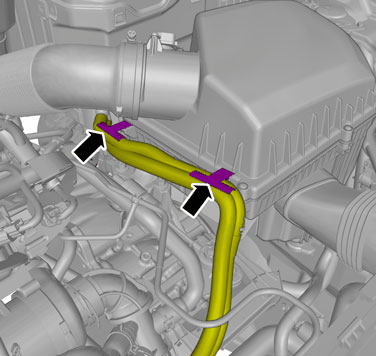

Disconnect the connector.
 Courtesy of VOLVO CARS CORPORATION
|
 Courtesy of VOLVO CARS CORPORATION
|

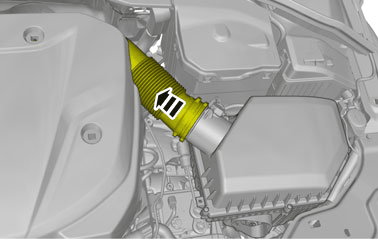

Remove the hose.
 Courtesy of VOLVO CARS CORPORATION
|
