Air Cleaner Housing [2016, B5254T12]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove the engine control module (ECM), refer to: ENGINE CONTROL MODULE

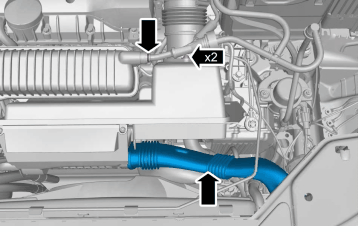

Courtesy of VOLVO CARS CORPORATION

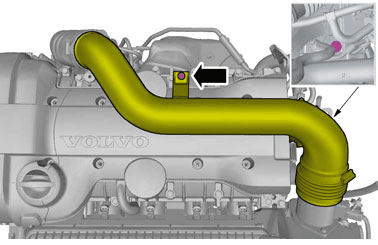

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

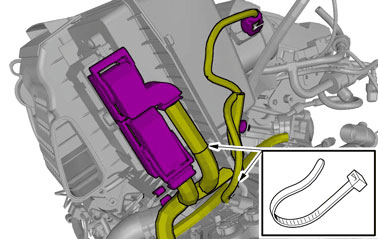

CAUTION:

Make sure that all parts of the clips are removed when cut.

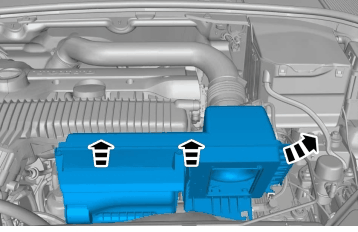

Courtesy of VOLVO CARS CORPORATION
