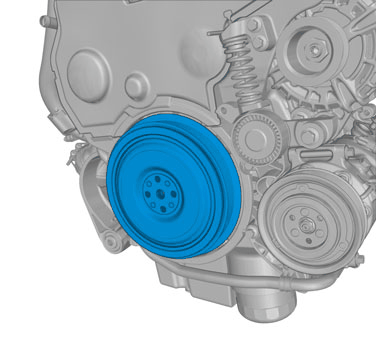

Vibration Damper [2017-2018, B4204T11]: Removal
NOTE:
Removal steps in this procedure may contain installation details.
Remove the auxiliary drive belt, refer to: AUXILIARY DRIVE BELT
Remove the screw.
Torque:Central screw oscillation damper (crankshaft),
- Stage 1: 110Nm
- Stage 2: 90°
Remove the screws.
Torque:Oscillation damper (screw) to crankshaft,
- Stage 1: 25Nm
- Stage 2: 90°
NOTE:
Make sure that a new component is installed.
