VVT Unit [2017-2018, B4204T11]: Removal
NOTE:
Removal steps in this procedure may contain installation details.
Remove the following items:
- the right front wheel, refer to: WHEELS
- Engine support insulator, right, refer to: ENGINE PAD RIGHT
- vibration damper, refer to: VIBRATION DAMPER

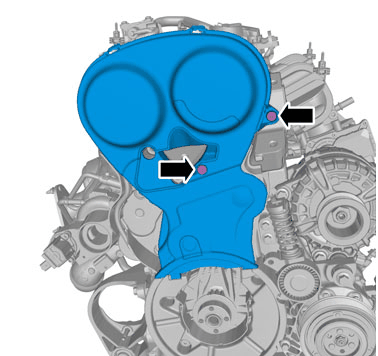

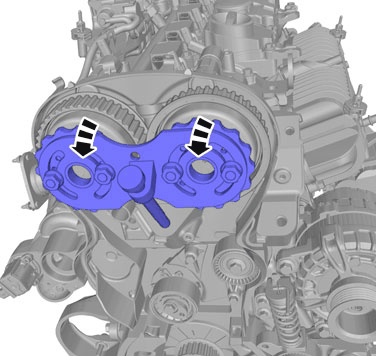

Remove the screws.
Torque: M6, 10Nm
WARNING:
Be prepared to collect escaping fluid.

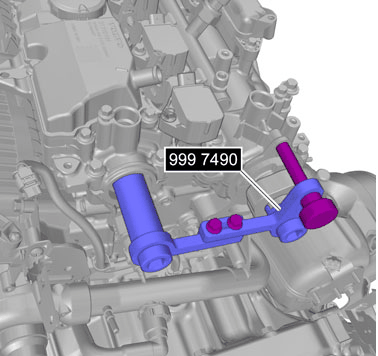

Remove timing belt, refer to: TIMING BELT

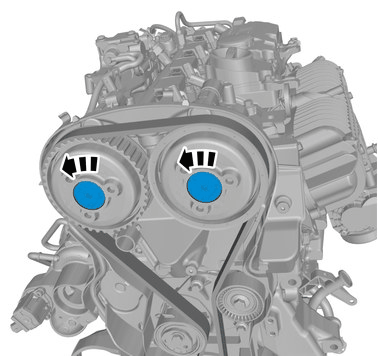

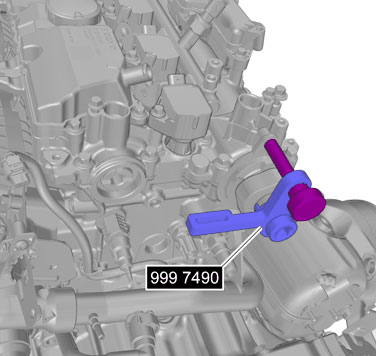

Remove the screws.
CAUTION:

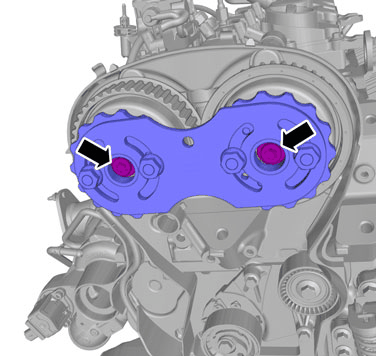

Make sure that the marked component has been removed.
WARNING:
Be prepared to collect escaping fluid.
Remove vacuum pump brake booster, refer to: VACUUM PUMP, BRAKE BOOSTER

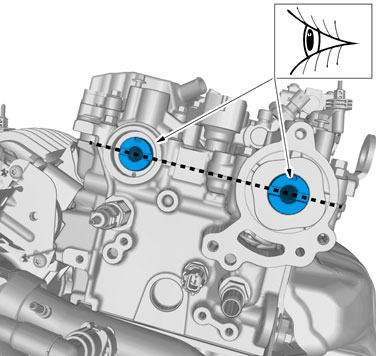

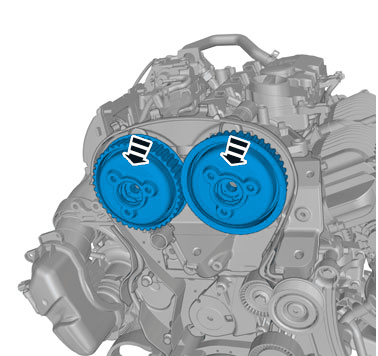

CAUTION:
Make sure that the component is positioned correctly.
