VVT Unit [2016, B5254T12]: Notes

NOTE: For information on Volvo color coded illustrations, refer to: IMAGES
SPECIAL TOOLS

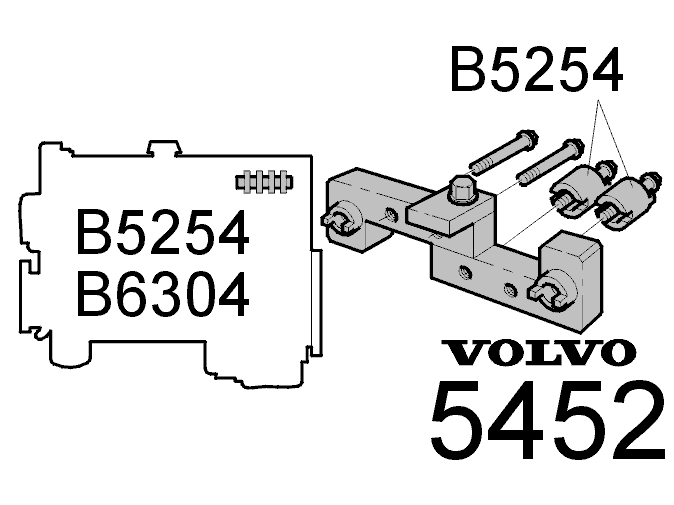

GLL100346Courtesy of VOLVO CARS CORPORATION
 999 5452 CAMSHAFT ADJUSTMENT TOOL (alignment-camshaft) B6304
Tool number:  999 5452
Tool description:  CAMSHAFT ADJUSTMENT TOOL (alignment-camshaft) B6304
Tool boards:  21
