VVT Unit [2016, B5254T12]: Installation

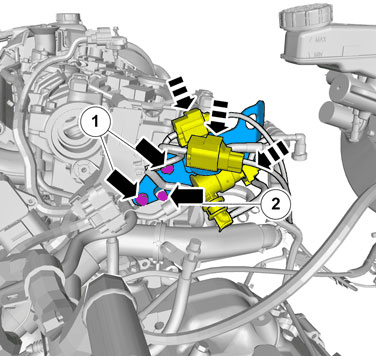

Courtesy of VOLVO CARS CORPORATION

NOTE:

Only tighten the bolts finger tight at this stage.

Install timing belt, refer to: TIMING BELT

Courtesy of VOLVO CARS CORPORATION

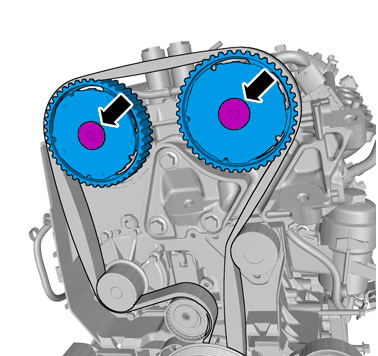

Torque: VVT unit, center screw, 120Nm

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Torque: M6, 10Nm
