VVT Solenoid [2017-2018, B4204T11]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

GLL1039311

Courtesy of VOLVO CARS CORPORATION

FOLLOWING STEPS CONCERN INLET CAMSHAFT

GLL1035140

Courtesy of VOLVO CARS CORPORATION

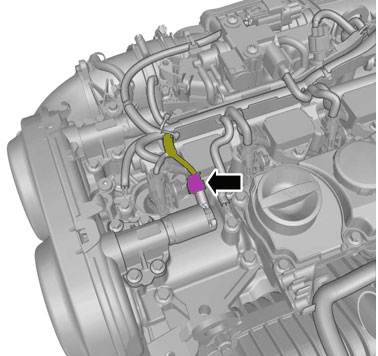

Release the lock.

Disconnect the connector.

GLL1011470

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the area around the component is clean and free of foreign material.

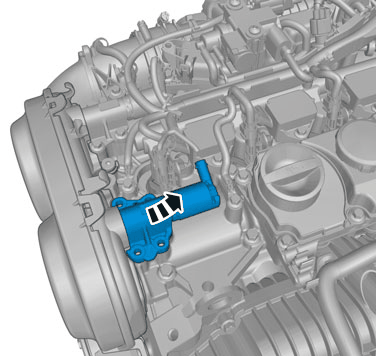

Remove the screws.

Torque: M6, 10Nm

GLL1039275

Courtesy of VOLVO CARS CORPORATION

FOLLOWING STEPS CONCERN EXHAUST CAMSHAFT

GLL1026103

Courtesy of VOLVO CARS CORPORATION

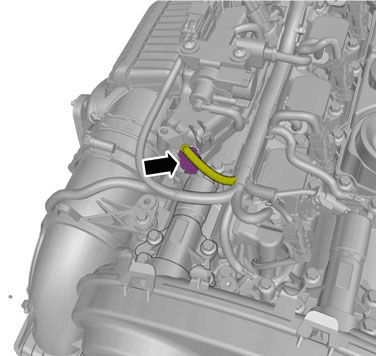

Release the lock.

Disconnect the connector.

GLL1021425

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the area around the component is clean and free of foreign material.

Remove the screws.

Torque: M6, 10Nm

GLL1024661

Courtesy of VOLVO CARS CORPORATION

GLL1015682

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the surface is clean and free of foreign material.

Use: Isopropanol, 1161721
