Upper Torque Rod [2017-2018, B4204T11]: Removal

Courtesy of VOLVO CARS CORPORATION

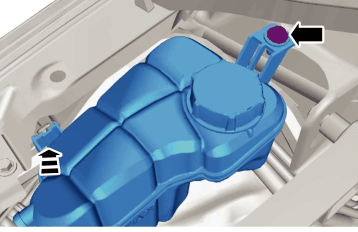

Loosen the screws.

Torque:  Expansion tank to body frame, 5.5Nm

Courtesy of VOLVO CARS CORPORATION

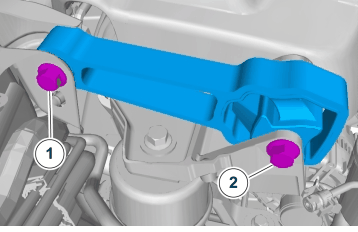

Remove the screws.

1. Torque:  Upper torque rod to spring strut turret, 110Nm
2. Torque:  Upper torque rod to engine mount bracket, 110Nm
