Timing Belt [2016, B5254T12]: Removal

Remove the following items:

• auxiliary drive belt, refer to: AUXILIARY DRIVE BELT
• Engine support insulator, right, refer to: ENGINE PAD RIGHT

Courtesy of VOLVO CARS CORPORATION

Torque:  M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Torque:  M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

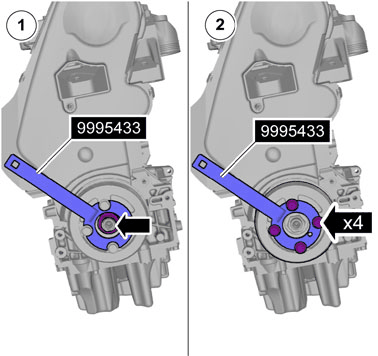

Special Tool: 999 5433

Torque:Oscillation damper (screw) to crankshaft,

• Stage 1: 25Nm
• Stage 2: 60°

Courtesy of VOLVO CARS CORPORATION

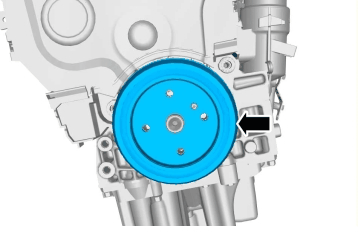

Torque:  Center nut vibration damper (crankshaft), 180Nm

Courtesy of VOLVO CARS CORPORATION

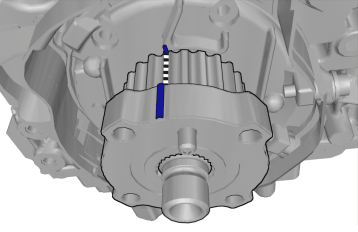

Courtesy of VOLVO CARS CORPORATION

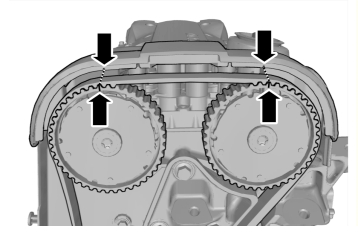

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

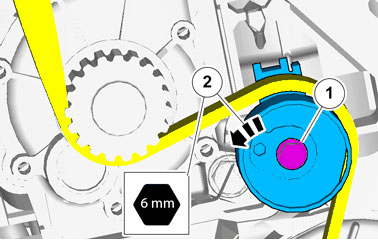

NOTE:

Do not loosen the bolt more than 4 turns.

2. Torque:  M8, 24Nm
3. Use:  Allen key

Courtesy of VOLVO CARS CORPORATION

Torque:  M8, 24Nm
