Rear Bushing SUBFRAME Front [2017-2018]: Notes

NOTE: For information on Volvo color coded illustrations, refer to: IMAGES

SPECIAL TOOLS

Courtesy of VOLVO CARS CORPORATION	999 7039 Connecting rod M16X400 (P2X)  Tool number:  999 7039 Tool description:  Connecting rod M16X400 (P2X) Tool boards:  65

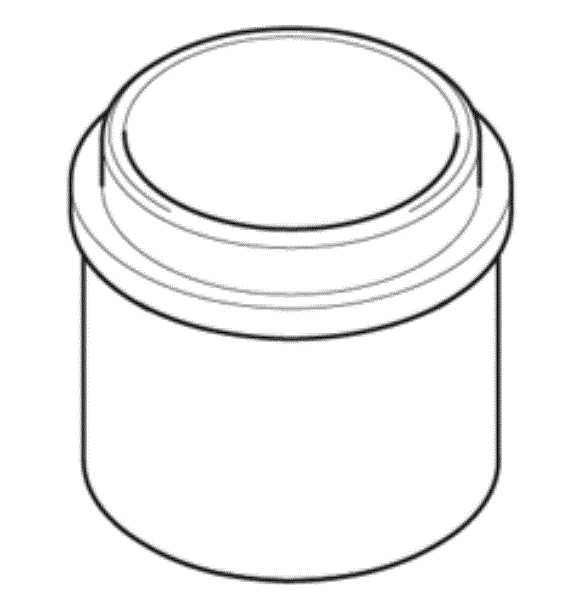

Courtesy of VOLVO CARS CORPORATION	999 7445 Drift  Tool number:  999 7445 Tool description:  Drift Tool boards:  61
Courtesy of VOLVO CARS CORPORATION	999 7444 Socket  Tool number:  999 7444 Tool description:  Socket Tool boards:  61
Courtesy of VOLVO CARS CORPORATION	999 7054 Adapter incl. 2x MC6C M6X12 (800 AWD, P2X)  Tool number:  999 7054 Tool description:  Adapter incl. 2x MC6C M6X12 (800 AWD, P2X) Tool boards:  65
Courtesy of VOLVO CARS CORPORATION	951 2923 Hydraulic hole cylinder  Tool number:  951 2923 Tool description:  Hydraulic hole cylinder Tool boards:  65
Courtesy of VOLVO CARS CORPORATION	999 7385 Drift  Tool number:  999 7385 Tool description:  Drift Tool boards:  61
Courtesy of VOLVO CARS CORPORATION	999 7304 Cone  Tool number:  999 7304 Tool description:  Cone Tool boards:  61
Courtesy of VOLVO CARS CORPORATION	999 7306 Counterhold  Tool number:  999 7306 Tool description:  Counterhold Tool boards:  61
