Oil Pan [2017-2018, B4204T11]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove oil filter, refer to: OIL FILTER

Remove oil cooler engine, refer to: OIL COOLER, ENGINE

Courtesy of VOLVO CARS CORPORATION

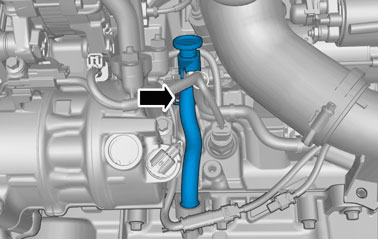

Loosen the hose clamp.

Torque: M10, 50Nm

Remove the screw.

Courtesy of VOLVO CARS CORPORATION

Loosen the hose clamp.

Torque: M8, 24Nm

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

Torque: M8, 24Nm

Remove the screw.

Courtesy of VOLVO CARS CORPORATION

Torque: M6, 10Nm

Remove the screw.

Courtesy of VOLVO CARS CORPORATION

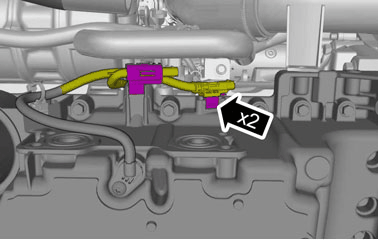

Disconnect the connectors.

Courtesy of VOLVO CARS CORPORATION

Loosen the clips.

Courtesy of VOLVO CARS CORPORATION

WARNING:

Be prepared to collect escaping fluid.

NOTE:

Use suitable paper to absorb any escaping fluid.

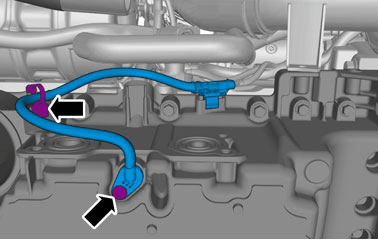

Remove the cable harness clips.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

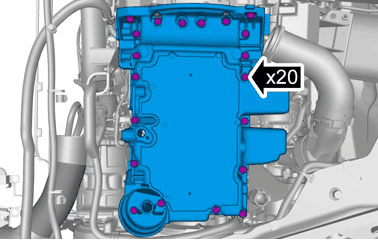

Remove the screws.
