Oil Pan [2017-2018, B4204T11]: Installation
CAUTION:
Make sure that the mating faces are clean and free of foreign material.
NOTE:

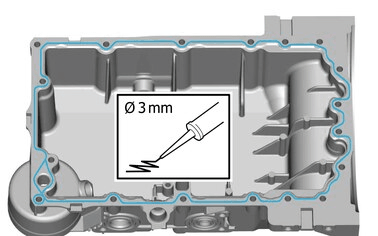

The component must be installed within 5 minutes of applying the sealant.
Use: Chemical gasket, 1161771
NOTE:

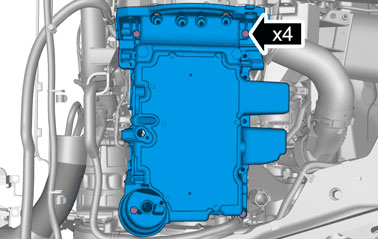

Only tighten the bolts finger tight at this stage.

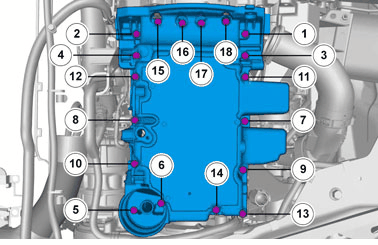

Torque: M10, 50Nm
Torque: M7, 17Nm
To install, reverse the removal procedure.
