Oil Pan [2016, B5254T12, TF-80SC AWD]: Installation
 Courtesy of VOLVO CARS CORPORATION
|

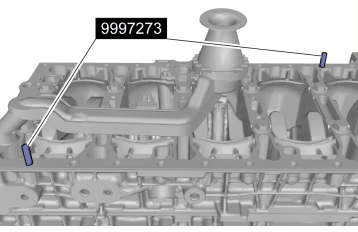

Special Tool: 999 7273
 Courtesy of VOLVO CARS CORPORATION
|
CAUTION:
Make sure that the gaskets are correctly located.
 Courtesy of VOLVO CARS CORPORATION
|
CAUTION:
Make sure that the mating faces are clean and free of foreign material.

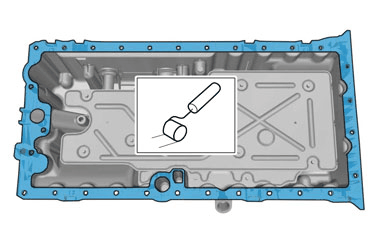

Use:
Cleaning agent, 1161721
Special Tool: 951 2767
Use:
Chemical gasket, 1161059
 Courtesy of VOLVO CARS CORPORATION
|

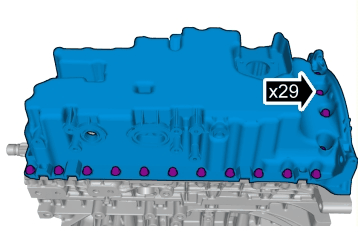

Torque:
M7, 17Nm
To install, reverse the removal procedure.
