Lower Torque Rod [2016, B5254T12, TF-80SC AWD]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

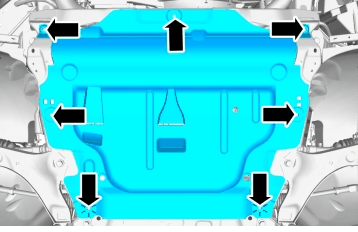

GLL153744Courtesy of VOLVO CARS CORPORATION

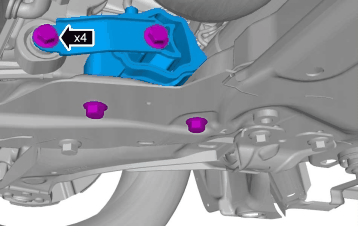

GLL155230Courtesy of VOLVO CARS CORPORATION

Torque:  Lower torque rod, 110Nm
