Front SUBFRAME, Service Position [2017, B4204T11 | 2018, B4204T11, TG-81SC AWD]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Courtesy of VOLVO CARS CORPORATION

WARNING:

Make sure that the ignition key is removed.

CAUTION:

Make sure that the steering column lock is engaged.

NOTE:

Make sure that the road wheels are in the straight ahead position.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that a new component is installed.

Torque: steering column to steering gear (steering shaft joint), 25Nm

ALTERNATIVE 1

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the tool fits.

If that is not the case, follow the instructions below.

On both sides.

Special Tool: 999 7089

WHEN NECESSARY, CARRY OUT THE FOLLOWING INSTRUCTION.

ALTERNATIVE 2

Courtesy of VOLVO CARS CORPORATION

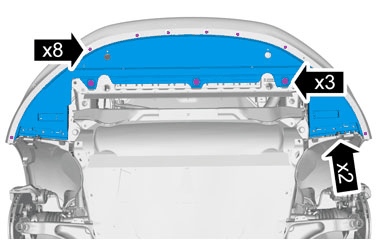

Remove the screws.

Remove the marked part.

Torque: M10, 50Nm

Courtesy of VOLVO CARS CORPORATION

Clean the marked area.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Note the position of the component before removal.

Mark using a pen

Remove the front wheels, refer to: WHEELS

Courtesy of VOLVO CARS CORPORATION

Loosen the screws.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the ball joint ball does not rotate.

On both sides.

Torque: Front stabilizer bar link to stabilizer bar, 70Nm

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the ball joint ball does not rotate.

Loosen the nut.

On both sides.

Torque: Tie rod end to wheel knuckle, 80Nm

Courtesy of VOLVO CARS CORPORATION

On both sides.

Special Tool: 951 2945

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

On both sides.

Torque: Brake caliper in steering arm, front, 120Nm

Courtesy of VOLVO CARS CORPORATION

Special Tool: 999 7310

On both sides.

Courtesy of VOLVO CARS CORPORATION

Special Tool: 999 7076

On both sides.

Courtesy of VOLVO CARS CORPORATION

Loosen the clips.

Loosen the screws.

Courtesy of VOLVO CARS CORPORATION

Loosen the screws.

Loosen the clips.

Courtesy of VOLVO CARS CORPORATION

Torque:Lower torque rod rear right, to subframe,
- Stage 1: 90Nm
- Stage 2: 80°
Torque: Lower torque rod bracket to transmission housing, 60Nm

Courtesy of VOLVO CARS CORPORATION

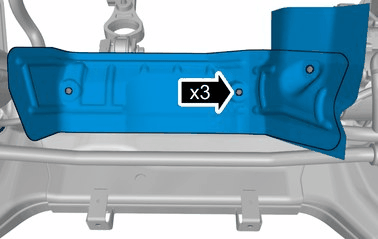

Loosen the screws.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

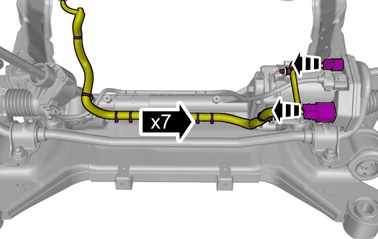

Loosen the clips.

Release the connector catches.

Disconnect the connectors.

VEHICLES WITH ELECTRIC POWER STEERING PUMP

Remove casing bumper front, refer to: COVER BUMPER FRONT

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

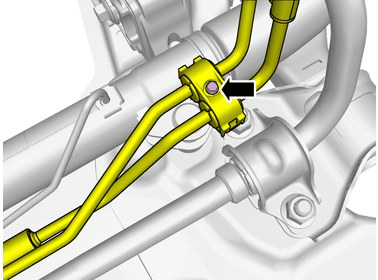

Remove the screw.

Courtesy of VOLVO CARS CORPORATION

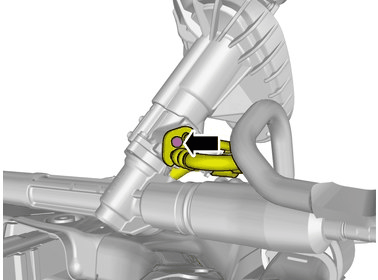

WARNING:

Be prepared to collect escaping fluid.

CAUTION:

Make sure that all openings are sealed.

NOTE:

Use new seals.

Remove the screw.

Torque: Pressure line to steering gear, 24Nm

Courtesy of VOLVO CARS CORPORATION

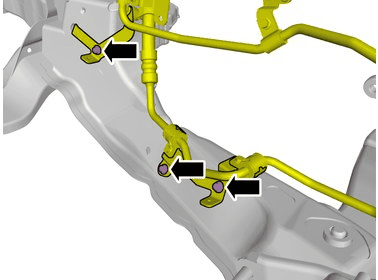

Remove the screws.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

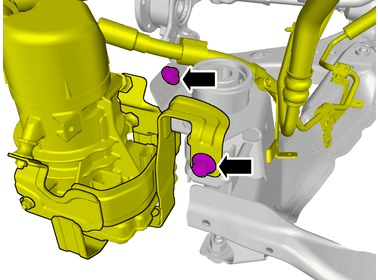

NOTE:

Make sure that the component is suspended in a proper way.

Remove the screws.

Torque: M8, 24Nm
Torque: M10, 50Nm

ALL VEHICLES

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Special Tool: 951 2951

Courtesy of VOLVO CARS CORPORATION

Torque: M10, 50Nm
Torque:Subframe to chassis (Rear screws),
- Stage 1: 150Nm
- Stage 2: 90°
Torque:Subframe to chassis (Front screws),
- Stage 1: 150Nm
- Stage 2: 90°
