Front SUBFRAME, Service Position [2016, B5254T12]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Courtesy of VOLVO CARS CORPORATION

WARNING:

Make sure that the ignition key is removed.

CAUTION:

Make sure that the steering column lock is engaged.

NOTE:

Make sure that the road wheels are in the straight ahead position.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that a new component is installed.

Torque: steering column to steering gear (steering shaft joint), 25Nm

ALTERNATIVE 1

Courtesy of VOLVO CARS CORPORATION

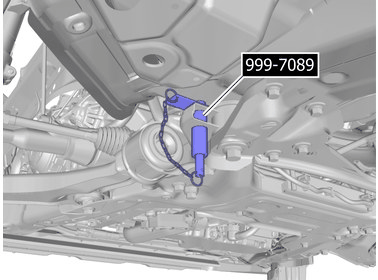

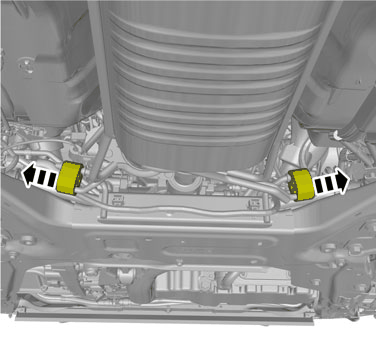

CAUTION:

Make sure that the tool fits.

If that is not the case, follow the instructions below.

On both sides.

Special Tool: 999 7089

WHEN NECESSARY, CARRY OUT THE FOLLOWING INSTRUCTION.

ALTERNATIVE 2

Courtesy of VOLVO CARS CORPORATION

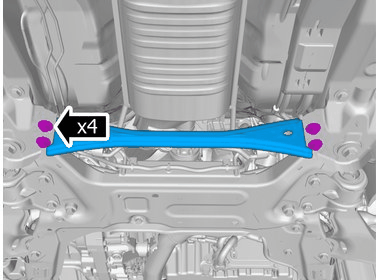

Remove the screws.

Remove the marked part.

Torque: M10, 50Nm

Courtesy of VOLVO CARS CORPORATION

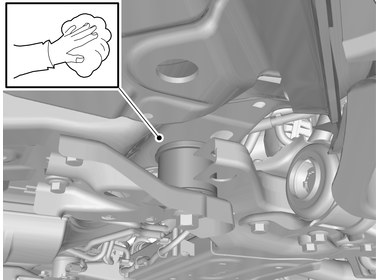

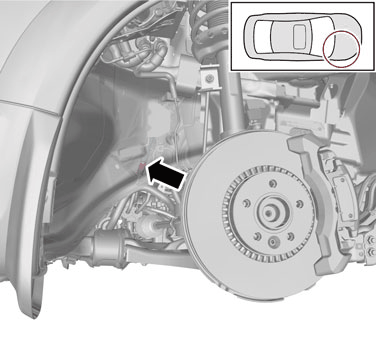

Clean the marked area.

Courtesy of VOLVO CARS CORPORATION

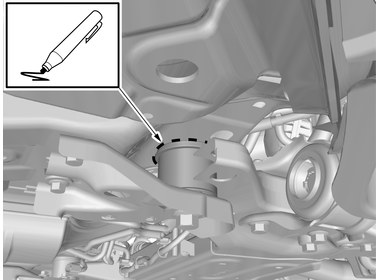

CAUTION:

Note the position of the component before removal.

Mark using a pen

Remove the wheel, refer to: WHEELS

Remove collision member, refer to: COLLISION MEMBER

VEHICLES WITH ELECTRIC POWER STEERING PUMP

Courtesy of VOLVO CARS CORPORATION

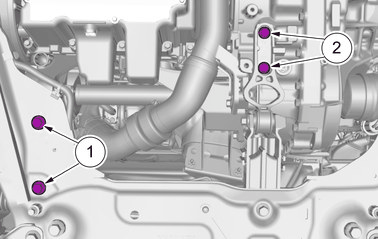

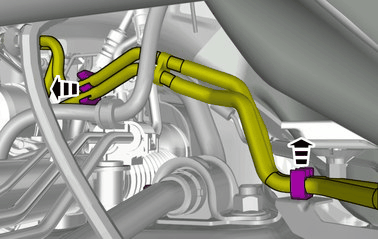

Loosen the screws.

Loosen the nuts.

Courtesy of VOLVO CARS CORPORATION

WARNING:

Be prepared to collect escaping fluid.

CAUTION:

Make sure that all openings are sealed.

Courtesy of VOLVO CARS CORPORATION

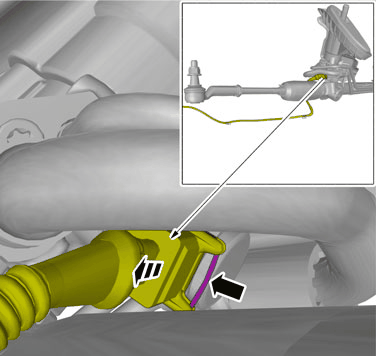

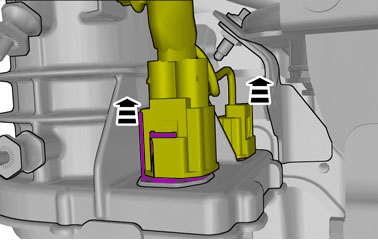

Release the connector catches.

Disconnect the connectors.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

Courtesy of VOLVO CARS CORPORATION

WARNING:

Be prepared to collect escaping fluid.

NOTE:

Make sure that the mating faces are clean and free of foreign material.

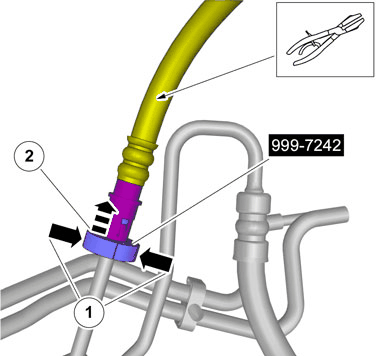

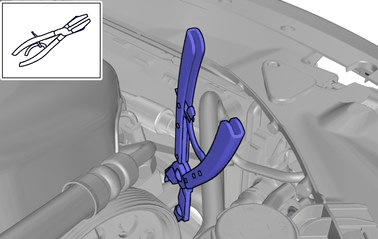

Special Tool: 999 7242

VEHICLES WITH MECHANICAL POWER STEERING PUMP

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

WARNING:

Be prepared to collect escaping fluid.

CAUTION:

Make sure that all openings are sealed.

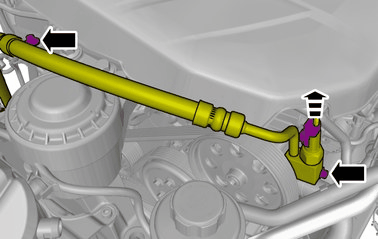

Disconnect the connector.

Loosen the screws.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

Courtesy of VOLVO CARS CORPORATION

WARNING:

Be prepared to collect escaping fluid.

NOTE:

Make sure that the mating faces are clean and free of foreign material.

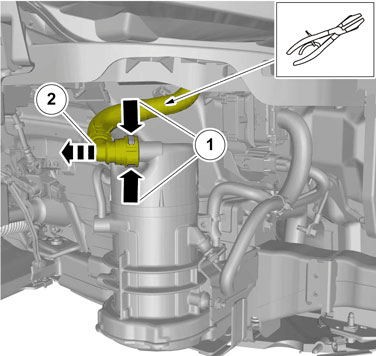

Special Tool: 999 7242 ,

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Loosen the screws.

Torque: M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the ball joint ball does not rotate.

On both sides.

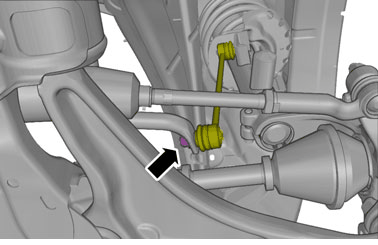

Torque: Front stabilizer bar link to stabilizer bar, 70Nm

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the ball joint ball does not rotate.

Loosen the nut.

On both sides.

Torque: Tie rod end to wheel knuckle, 80Nm

Courtesy of VOLVO CARS CORPORATION

On both sides.

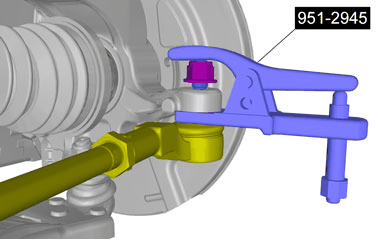

Special Tool: 951 2945

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Torque: Brake caliper in steering arm, front, 120Nm

On both sides.

Courtesy of VOLVO CARS CORPORATION

Special Tool: 999 7310

On both sides.

Courtesy of VOLVO CARS CORPORATION

Special Tool: 999 7076

On both sides.

Courtesy of VOLVO CARS CORPORATION

Torque: Lower torque rod, 110Nm
Torque: M10, 50Nm

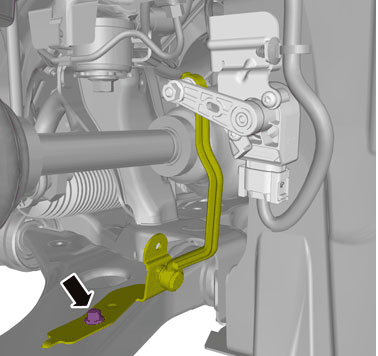

Loosen the screws.

Courtesy of VOLVO CARS CORPORATION

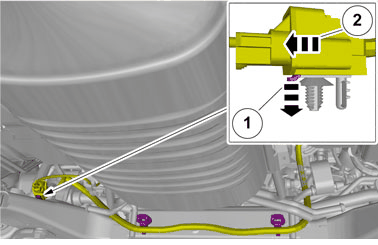

Release the connector's catch.
Disconnect the connector.
Loosen the clip.

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

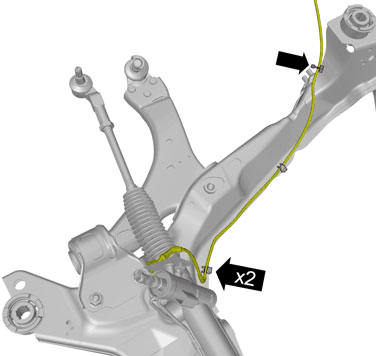

Remove the fasteners.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Special Tool: 951 2951

Courtesy of VOLVO CARS CORPORATION

Torque: M10, 50Nm

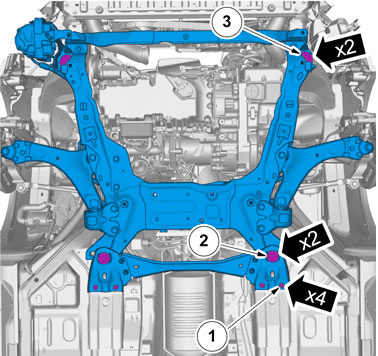

Torque:Subframe to chassis (Rear screws),
- Stage 1: 150Nm
- Stage 2: 90 °
Torque:Subframe to chassis (Front screws),
- Stage 1: 150Nm
- Stage 2: 90°
