Front Bushing SUBFRAME Front [2017-2018, B4204T11, TG-81SC AWD]: Removal

Remove front subframe, service position, refer to: FRONT SUBFRAME, SERVICE POSITION

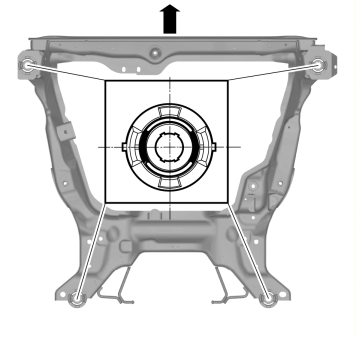

GLL164127Courtesy of VOLVO CARS CORPORATION

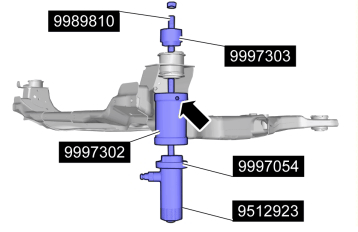

GLL158871Courtesy of VOLVO CARS CORPORATION

Special Tool: 951 2923  , Special Tool: 999 7054  , Special Tool: 998 9810  , Special Tool: 999 7303   and Special Tool: 999 7302
