Engine [2017-2018, B4204T11, TG-81SC AWD]: Removal

Courtesy of VOLVO CARS CORPORATION

Remove the following items:

• air cleaner (ACL) housing, refer to: AIR CLEANER HOUSING
• battery, refer to: BATTERY
• plenum cover, refer to: PLENUM COVER

Courtesy of VOLVO CARS CORPORATION

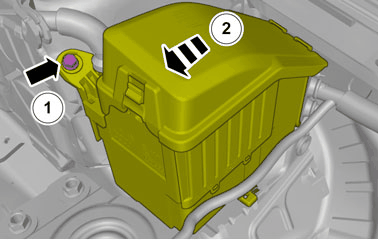

Loosen the screws.

Torque:  M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

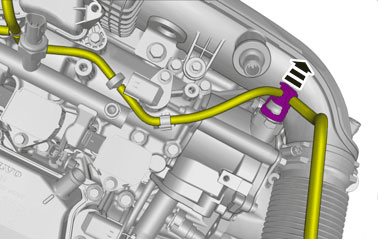

Release the lock.

Remove the hose.

Courtesy of VOLVO CARS CORPORATION

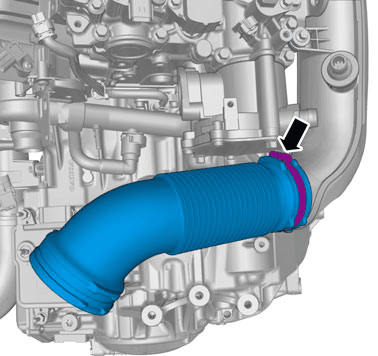

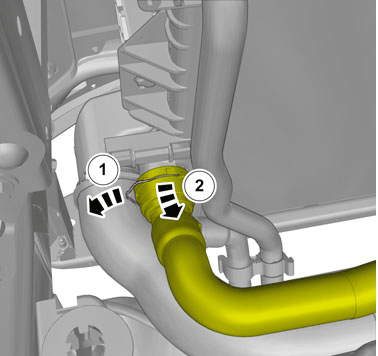

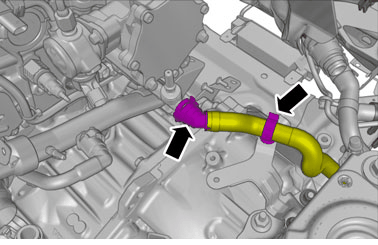

Loosen the hose clamp.

Remove the hose.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

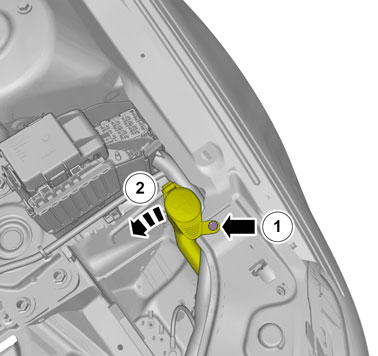

Remove the nut.

Torque:  M8, 24Nm

Loosen the clip.

Courtesy of VOLVO CARS CORPORATION

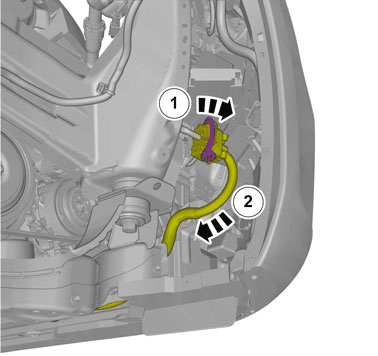

Release the connector catches.

Disconnect the connectors.

Courtesy of VOLVO CARS CORPORATION

Remove the nut.

Torque:  M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

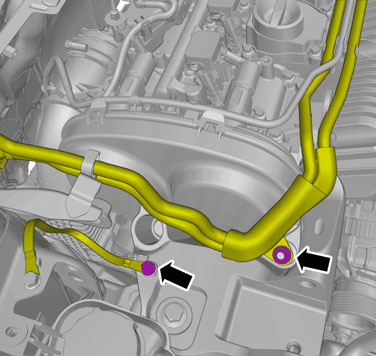

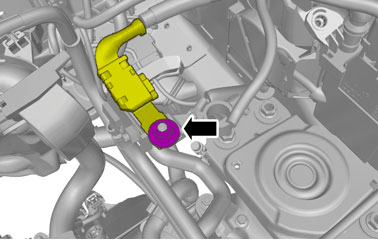

Remove the screw.

Torque:  M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

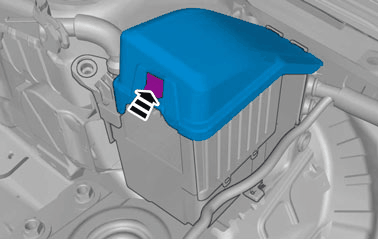

Release the lock.

Courtesy of VOLVO CARS CORPORATION

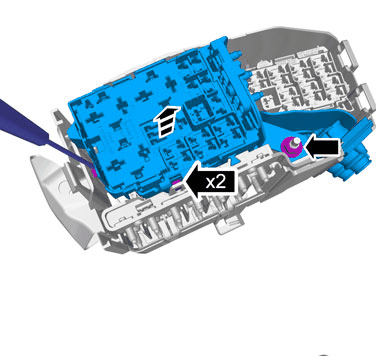

Remove the screw.

Torque:  M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

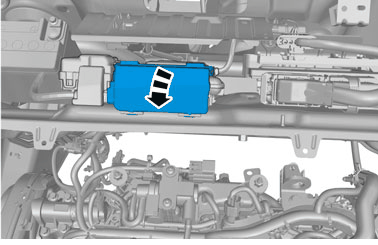

Remove the nut.

Torque:  M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Remove the nut.

Torque:  M8, 24Nm

Loosen the clip.

Courtesy of VOLVO CARS CORPORATION

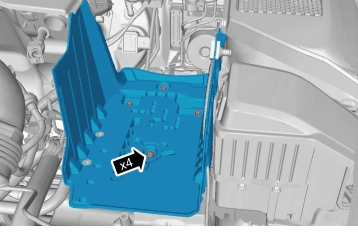

Remove the screws.

Torque:  M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

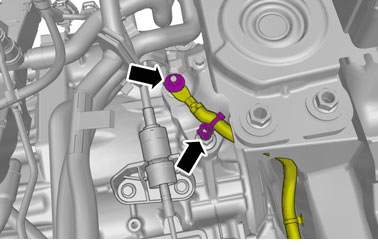

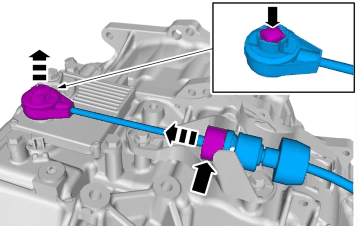

Release the gearshift cable.

Remove the following items:

• the catalytic converter, refer to: CATALYTIC CONVERTER
• Drive shaft right, refer to: DRIVE SHAFT RIGHT
• Driveshaft left, refer to: DRIVESHAFT LEFT
• auxiliary drive belt, refer to: AUXILIARY DRIVE BELT

Courtesy of VOLVO CARS CORPORATION

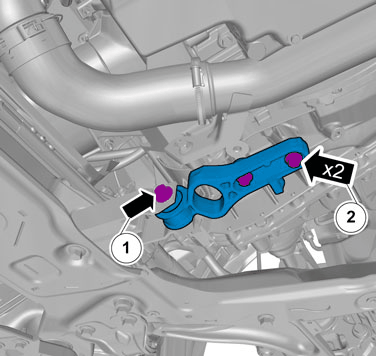

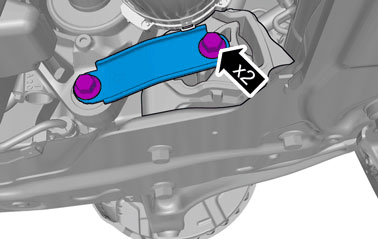

1. Torque:  Lower torque rod, 110Nm
2. Torque:  Lower torque rod bracket to transmission housing, 60Nm

Courtesy of VOLVO CARS CORPORATION

Torque:  Lower torque rod rear right, to Engine mount bracket, 110Nm

Perform cooling system draining, charging and bleeding, refer to: COOLING SYSTEM - DRAINING, CHARGING AND BLEEDING

Remove the engine cooling fan, refer to: ENGINE COOLING FAN

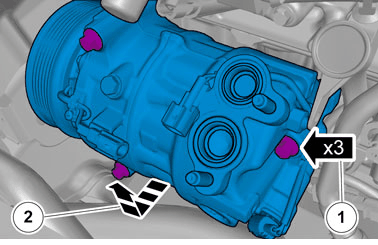

Courtesy of VOLVO CARS CORPORATION

Special Tool: 999 5474

Courtesy of VOLVO CARS CORPORATION

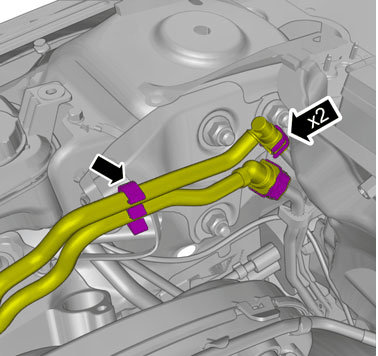

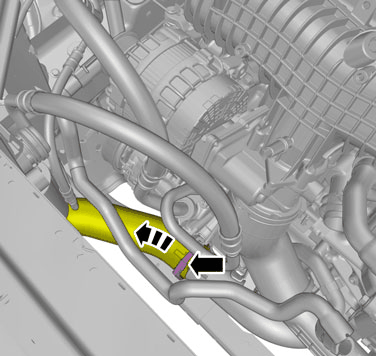

Release the locks.

Undo the hoses from the connections.

Courtesy of VOLVO CARS CORPORATION

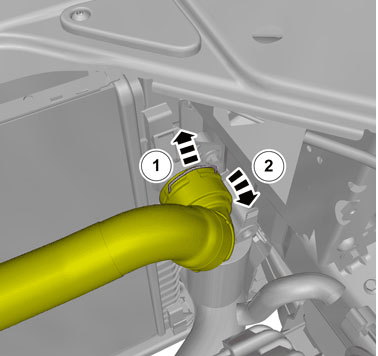

Release the lock.

Remove the hose.

Loosen the clip.

Courtesy of VOLVO CARS CORPORATION

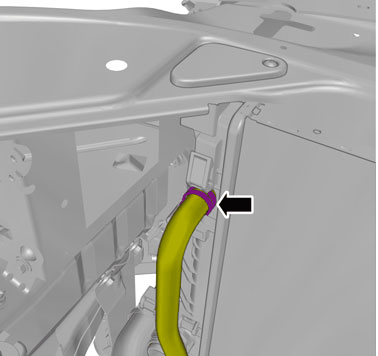

Loosen the hose clamp.

Remove the hose.

Courtesy of VOLVO CARS CORPORATION

Release the lock.

Remove the hose.

Courtesy of VOLVO CARS CORPORATION

Loosen the hose clamp.

Remove the hose.

Courtesy of VOLVO CARS CORPORATION

Release the lock.

Remove the hose.

Courtesy of VOLVO CARS CORPORATION

Loosen the hose clamp.

Remove the hose.

Courtesy of VOLVO CARS CORPORATION

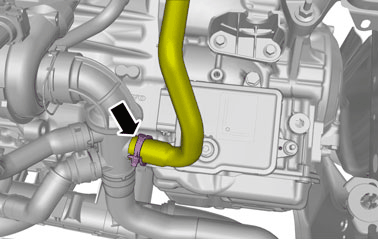

Loosen the hose clamp.

Remove the hose.

Courtesy of VOLVO CARS CORPORATION

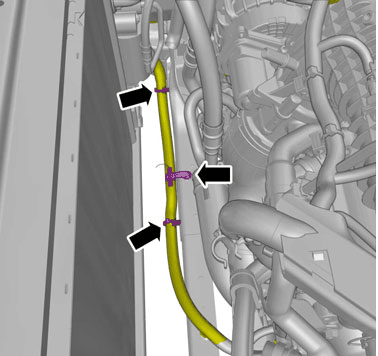

Remove the clips.

Courtesy of VOLVO CARS CORPORATION

Release the lock.

Disconnect the connector.

Remove the upper torque rod, refer to: UPPER TORQUE ROD

Courtesy of VOLVO CARS CORPORATION

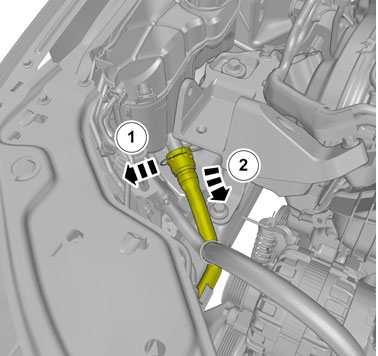

Release the lock.

Remove the hose.

Courtesy of VOLVO CARS CORPORATION

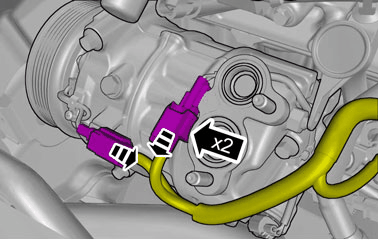

Release the connector catches.

Disconnect the connectors.

Courtesy of VOLVO CARS CORPORATION

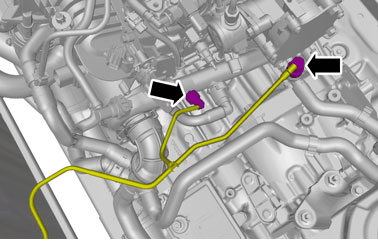

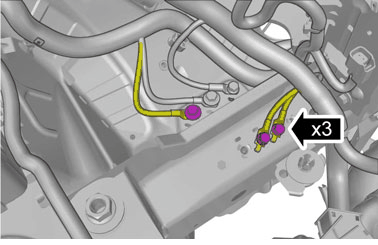

Remove the screws.

Torque:  M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

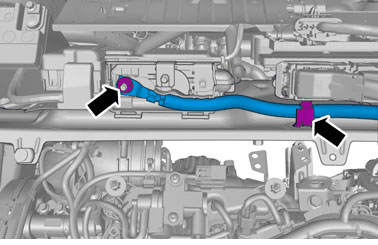

Remove the screw.

Torque:  M6, 10Nm

Remove the nut.

See information about safety information gasoline-fuel system, refer to: SAFETY INFORMATION GASOLINE - FUEL SYSTEM

Courtesy of VOLVO CARS CORPORATION

Loosen the clips.

Release the locks.

Undo the hoses from the connections.

Courtesy of VOLVO CARS CORPORATION

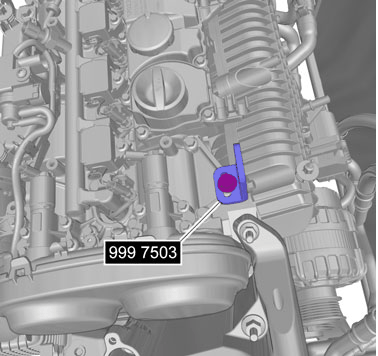

Special Tool: 999 7503

Torque:  M10, 50Nm

Courtesy of VOLVO CARS CORPORATION

Special Tool: 999 2810   and Special Tool: 999 5185

Use:  Engine lift

Remove the following items:

• Engine support insulator, right, refer to: ENGINE PAD RIGHT
• Engine support insulator left, refer to ENGINE PAD LEFT

Courtesy of VOLVO CARS CORPORATION
