Engine, Removal [2016, B5254T12, TF-80SC AWD]

Courtesy of VOLVO CARS CORPORATION	951 2666 Replaced by 9997298  Tool number:  951 2666 Tool description:  Replaced by 9997298 Tool boards:  23
Courtesy of VOLVO CARS CORPORATION	999 5743 Counterhold (screwed joint/propshaft) V70 AWD  Tool number:  999 5743 Tool description:  Counterhold (screwed joint/propshaft) V70 AWD Tool boards:  46
Courtesy of VOLVO CARS CORPORATION	999 7598 Puller  Tool number:  999 7598 Tool description:  Puller Tool boards:  40
Courtesy of VOLVO CARS CORPORATION	999 2810 LIFTING YOKE (ENGINE)  Tool number:  999 2810 Tool description:  LIFTING YOKE (ENGINE) Tool boards:  21
Courtesy of VOLVO CARS CORPORATION	999 5185 HOOK (LIFTING OUT ENGINE-TO 2810)  Tool number:  999 5185 Tool description:  HOOK (LIFTING OUT ENGINE-TO 2810) Tool boards:  21

REMOVAL

Perform depressurizing fuel system, refer to: FUEL SYSTEM PRESSURE RELEASE

Drain cooling system, draining, filling, and bleeding, refer to: COOLING SYSTEM - DRAINING, CHARGING AND BLEEDING

Remove the following items:

• plenum cover, refer to: PLENUM COVER
• lambda probe, refer to: LAMBDA PROBE
• air cleaner (ACL) housing, refer to: AIR CLEANER HOUSING
• battery, refer to: BATTERY
• auxiliary drive belt, refer to: AUXILIARY DRIVE BELT
• the catalytic converter, refer to: CATALYTIC CONVERTER
• Drive shaft right, refer to: DRIVE SHAFT RIGHT
• Driveshaft left, refer to: DRIVESHAFT LEFT
• Temperature and manifold absolute pressure MAPT sensor, refer to: TEMPERATURE AND MANIFOLD ABSOLUTE PRESSURE MAPT SENSOR
• Engine Rear Lower Support Insulator LH, refer to: ENGINE REAR LOWER SUPPORT INSULATOR LH

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

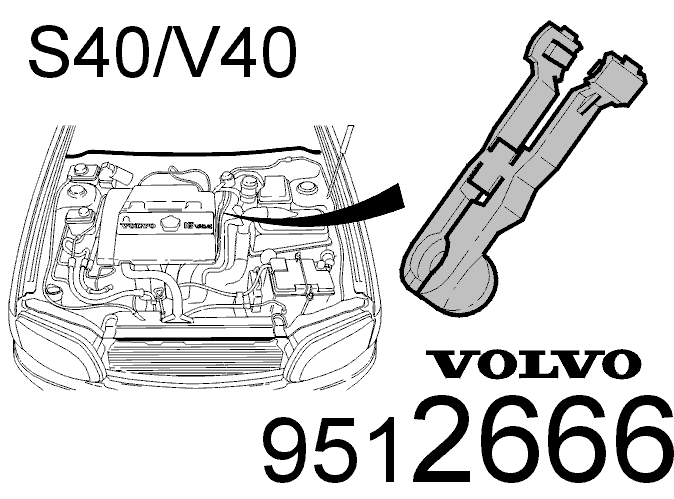

Special Tool: 951 2666

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

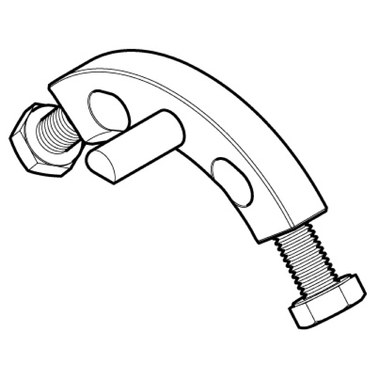

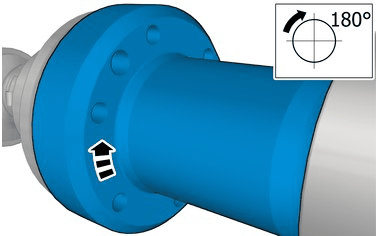

Special Tool: 999 5743

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

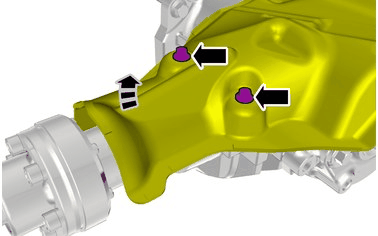

Lift the marked component up

Torque:  M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Tighten the bolts.

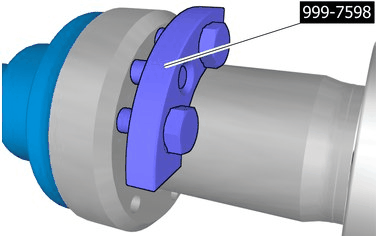

Special Tool: 999 7598

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Tighten the bolts.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

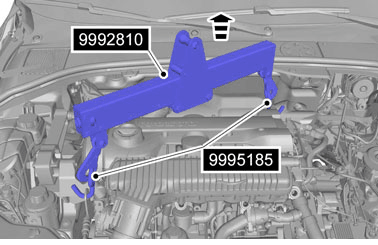

Special Tool: 999 2810 T9992810,  and Special Tool: 999 5185

Remove the following items:

• Engine support insulator, right, refer to: ENGINE PAD RIGHT
• Engine support insulator left, refer to: ENGINE PAD LEFT
