Engine Pad Right [2017-2018, B4204T11]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

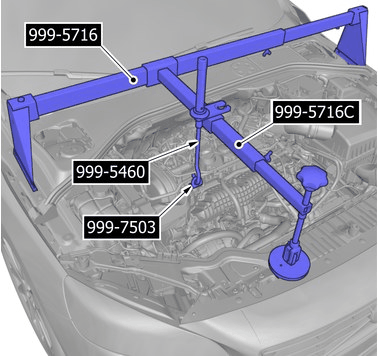

Courtesy of VOLVO CARS CORPORATION

Loosen the clips.

Remove the marked part.

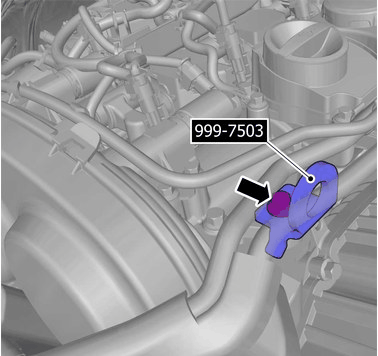

Courtesy of VOLVO CARS CORPORATION

CAUTION:

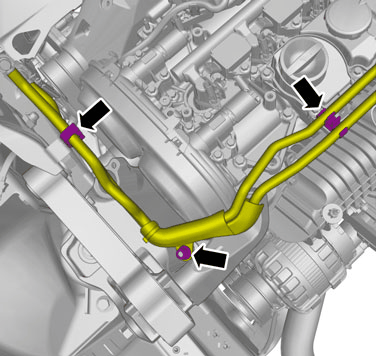

Note the routing of the lines and hoses.

Remove the nut.

Torque: M8, 24Nm

Remove the upper torque rod, refer to: UPPER TORQUE ROD

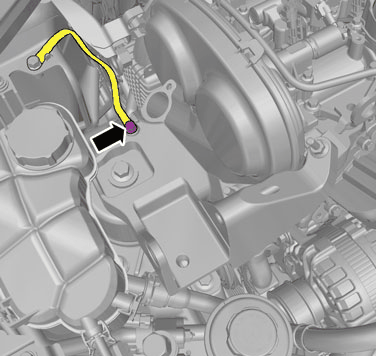

Courtesy of VOLVO CARS CORPORATION

Loosen the screws.

Torque: M6, 10Nm

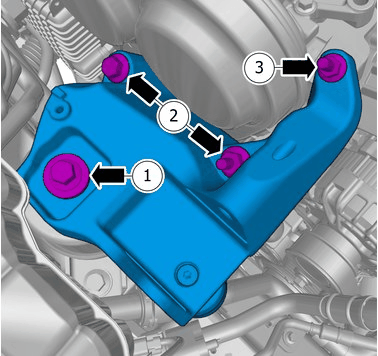

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque: M12, 80Nm
Torque:Bracket engine mounting to cylinder head,
- Stage 1: 90Nm
- Stage 2: 120°
Torque: Bracket to cylinder head, stud bolt, 60Nm

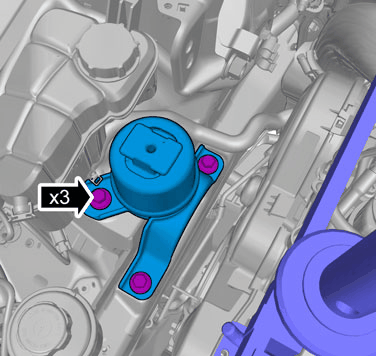

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Torque: Right-hand engine pad to body frame, 90Nm
