Engine Pad Right [2016, B5254T12, TF-80SC AWD]: Removal

Remove the upper torque rod, refer to: UPPER TORQUE ROD

Courtesy of VOLVO CARS CORPORATION

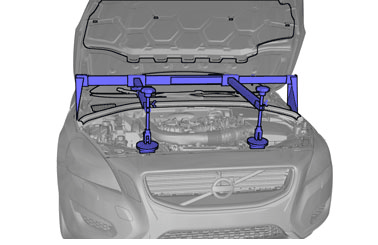

Special Tool: 999 5716   and Special Tool: 999 5716

Courtesy of VOLVO CARS CORPORATION

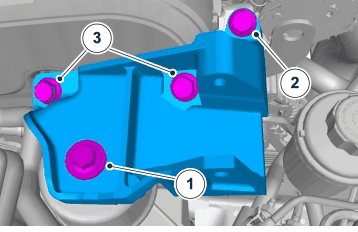

Remove the following items:

1. Torque:  M12, 80Nm
2. Torque:  Bracket engine mounting to cylinder head, 48Nm
3. Torque:  M12, 80Nm

Courtesy of VOLVO CARS CORPORATION

Torque:  M12, 80Nm
