Engine Pad Left [2017-2018, B4204T11]: Removal

Courtesy of VOLVO CARS CORPORATION

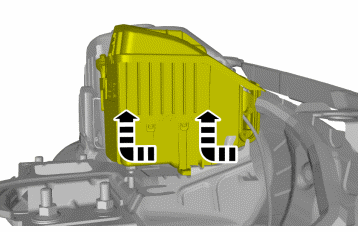

Loosen the clips.

Remove the following items:

• air cleaner (ACL) housing, refer to: AIR CLEANER HOUSING
• battery, refer to: BATTERY

Courtesy of VOLVO CARS CORPORATION

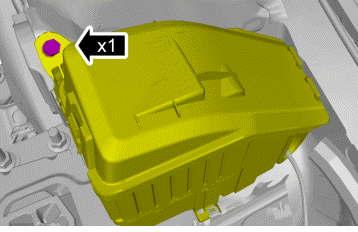

Remove the screws.

Torque:  M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

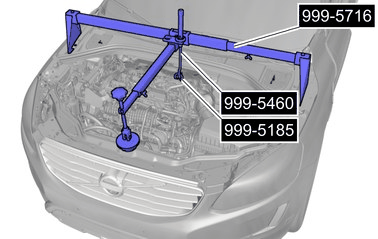

Special Tool: 999 5716  , Special Tool: 999 5460   and Special Tool: 999 5185

Courtesy of VOLVO CARS CORPORATION

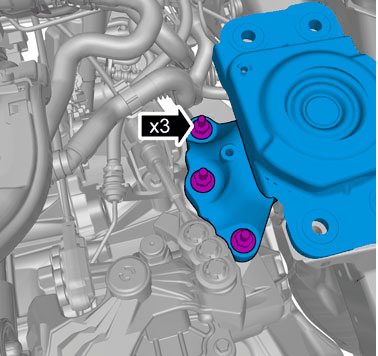

Loosen the screws.

Torque:  M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

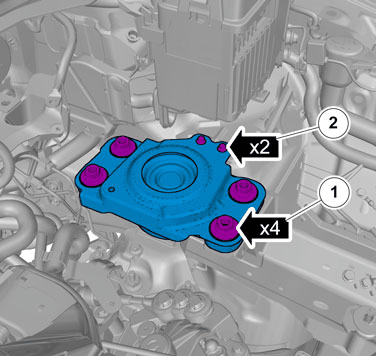

Remove the nuts.

Remove the nuts.

1. Torque:  Engine pad to frame member, 90Nm
2. Torque:  M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

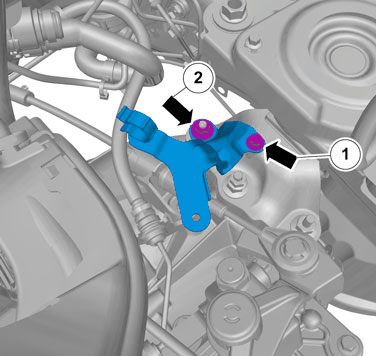

Remove the cable harness clips.

Remove the nut.

Torque:  M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

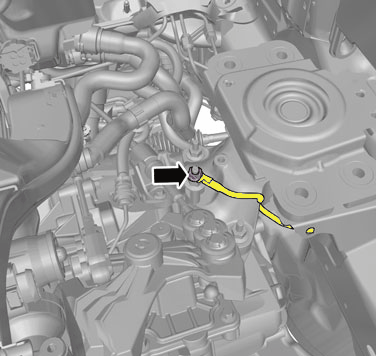

Remove the screw.

Remove the nut.

1. Torque:  M8, 24Nm
2. Torque:  M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

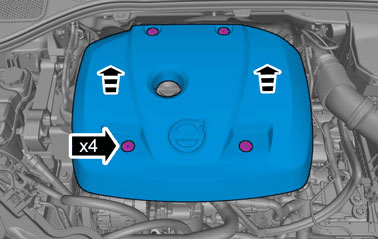

Remove the screws.

Torque:  M12, 80Nm
