Engine Pad Left [2016, B5254T12]: Removal

Remove the air filter housing, refer to: AIR CLEANER HOUSING

Remove battery, refer to: BATTERY

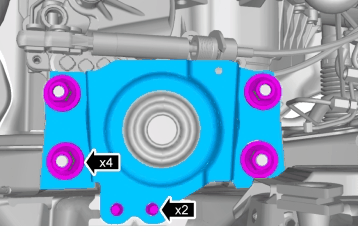

Courtesy of VOLVO CARS CORPORATION

Torque:  M6, 10Nm

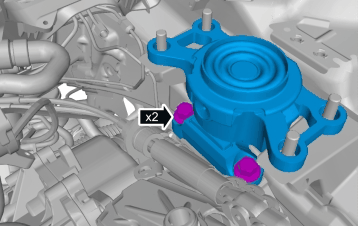

Courtesy of VOLVO CARS CORPORATION

Special Tool: 999 5716  , Special Tool: 999 5460   and Special Tool: 999 5185

Courtesy of VOLVO CARS CORPORATION

1. Torque:  M12, 80Nm
2. Torque:  M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

Torque:  Engine support insulator left, 175Nm
