Cylinder Head [2017-2018, B4204T11]: Installation

Courtesy of VOLVO CARS CORPORATION

Blow clean using compressed air

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Take extra care not to damage the mating faces.

NOTE:

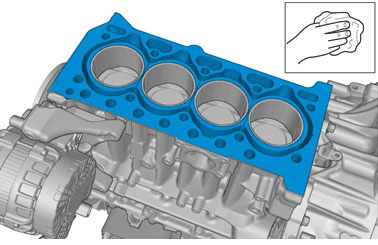

Make sure that the mating faces are clean and free of foreign material.

Use: Isopropanol

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Take extra care not to damage the mating faces.

NOTE:

Make sure that the mating faces are clean and free of foreign material.

Use: Isopropanol

Courtesy of VOLVO CARS CORPORATION

NOTE:

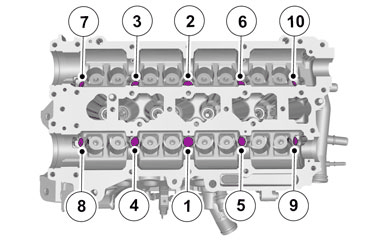

Make sure to follow the sequence indicated.

NOTE:

Make sure that a new component is installed.

Tighten the bolts.

Torque:Cylinder head,

Stage 1: 40Nm
Stage 2: 120°
Stage 3: 120 °

Perform valve clearance, refer to: VALVE CLEARANCE

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that these components are installed to the noted removal position.

Use: Engine oil

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the component is positioned correctly.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the component is positioned correctly.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the component is positioned correctly.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Take extra care not to damage the mating faces.

NOTE:

Make sure that the mating faces are clean and free of foreign material.

Use: Isopropanol

Courtesy of VOLVO CARS CORPORATION

NOTE:

The component must be installed within 5 minutes of applying the sealant.

Use: Chemical gasket, 1161771

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that equal pressure is applied to the full length of the component.

NOTE:

Make sure to follow the sequence indicated.

Tighten the bolts.

Torque: M7, 17Nm

To install, reverse the removal procedure.
