Carrier Plate [2017-2018, B4204T11, TG-81SC AWD]: Removal

Remove transmission, refer to: TRANSMISSION

Courtesy of VOLVO CARS CORPORATION

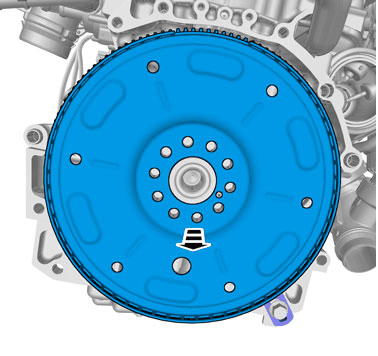

Remove the screws.

Torque:  M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Install the screw.

Special Tool: 999 7120

Use:  Screw M10 x 50 mm

Use:  Nut M10

Courtesy of VOLVO CARS CORPORATION

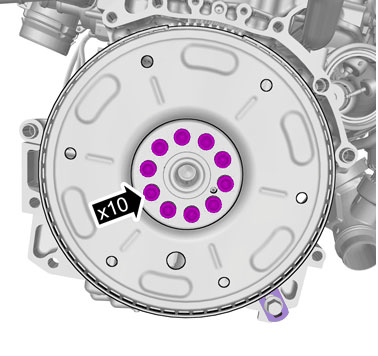

Remove the screws.

Courtesy of VOLVO CARS CORPORATION
