Carrier Plate [2016, B5254T12, TF-80SC AWD]: Installation
CAUTION:

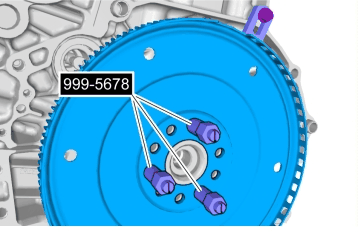

Make sure that the flywheel is in full contact with the crankshaft flange before installing the flywheel bolts.
NOTE:
Make sure that the locating pin on the crankshaft is aligned with the guide hole in the flywheel or flexplate.

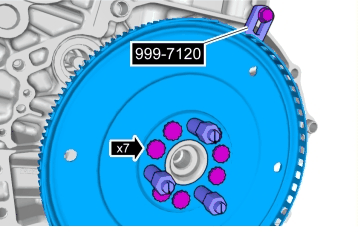

Torque:Carrier plate,
- Stage 1: 45Nm
- Stage 2: 50°

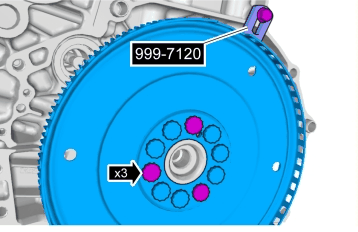

Torque:Carrier plate,
- Stage 1: 45Nm
- Stage 2: 50°
Install the transmission, refer to: TRANSMISSION
