Removal And Installation
REMOVAL
Remove the following items:
- vibration damper, refer to: VIBRATION DAMPER
- oil pump, refer to: OIL PUMP

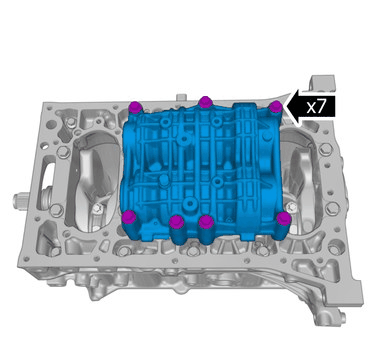

Remove the screws.

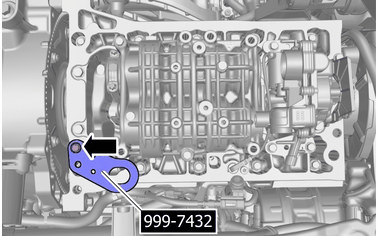

Remove the marked part.
CHECK

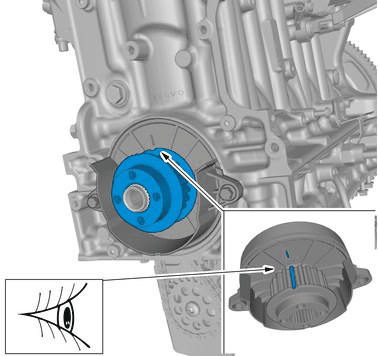

Make sure that the component is positioned correctly.
INSTALLATION
Make sure that new bolts are installed.

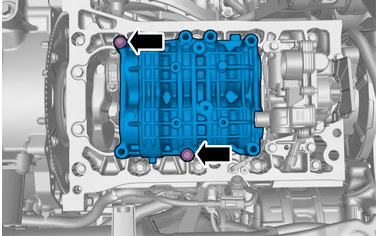

Install the marked component.
Tighten the bolts.
Use hands only.

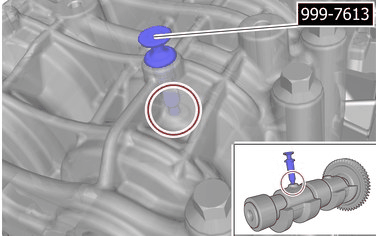

Remove the Special Tool.
Use: Screw
Torque: M7, 17Nm
Place the component where indicated in the graphic.
ADJUSTMENT

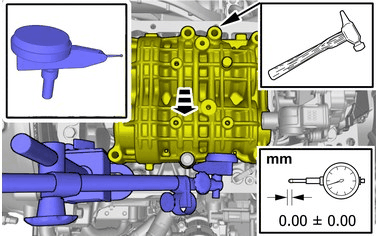

Tap the balance shaft assembly in the direction of the oil pressure sensor until it reaches its end position. Clear the measurement gauge.
Use: Plastic mallet
Use: Magnetic stand
Use: Dial gauge finger clock

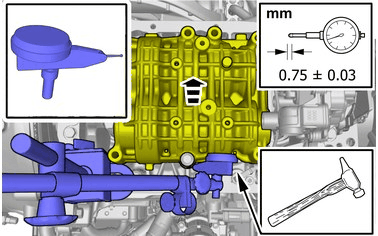

Tap the balance shaft assembly in the direction away from the oil pressure sensor until it reaches the specified value
Leave the measurement gauge on when pulling the bolts in the next step and check that the value is not changed.
Use: Plastic mallet
INSTALLATION
Make sure that new bolts are installed.

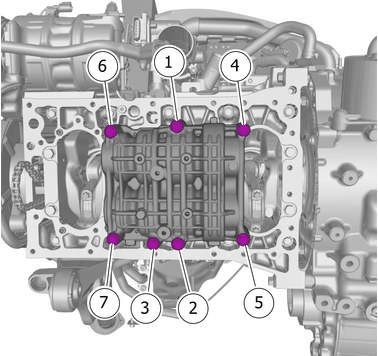

Make sure to follow the sequence indicated.
Tighten the bolts.
Torque:Balance shaft assembly, to Cylinder block,
- Stage 1: 8Nm
- Stage 2: 210°
CHECK
Repeat adjustment until clearance is evident.
A certain amount of clearance must be apparent when doing this test.

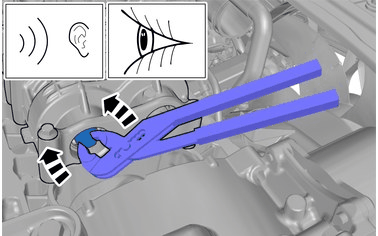

Use: Pipe wrench
HINT: Use a 1/2 inch combined wrench for a better feel.
INSTALLATION
To install, reverse the removal procedure.
