Engine [2016, B5254T12]: Pistons

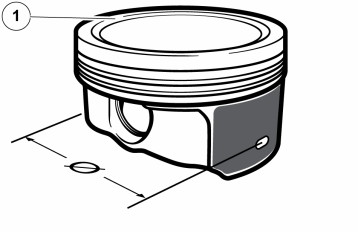

GLL158838Courtesy of VOLVO CARS CORPORATION
PISTONS

Standard  The diameter is measured 12 mm from the bottom of the piston
C-marked1 ........ mm 82.950-82.960
D-marked1 ........ mm 82.960-82.970
E-marked1 ........ mm 82.970-82.980
1 Classification is marked on the top of the piston.
PISTON RUNNING CLEARANCE

Tolerance piston/cylinder - top........ mm 0.010 - 0.030
PISTON RINGS

Top ring........ mm 1.2 -0.01/-0.03
1st ring........ mm 1.5 -0.01/-0.03
Oil ring........ mm 2 -0.01/-0.136
PISTON PIN

Diameter........ mm 21.000 0.000/-0.004
Length........ mm 57.0 0.0/+0.2
