Cylinder Block

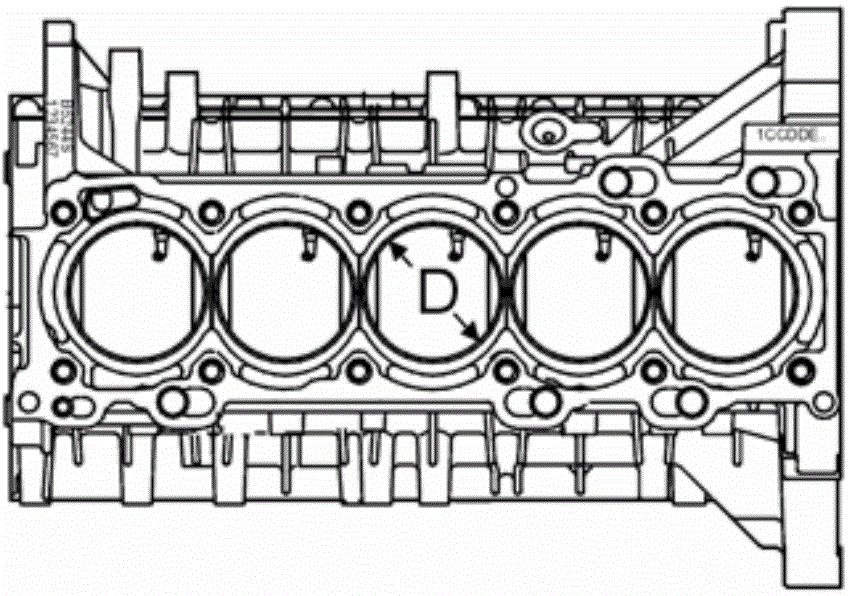

GLL174914Courtesy of VOLVO CARS CORPORATION
CYLINDER BORE (D)

Standard
C-marked........ mm 83.000-83.010
D-marked........ mm 83.010-83.020
E-marked........ mm 83.020-83.030
CYLINDRICITY

Maximum deviation
Cylinder bore........ mm 0.013
